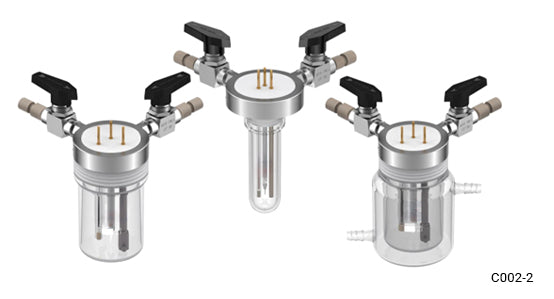

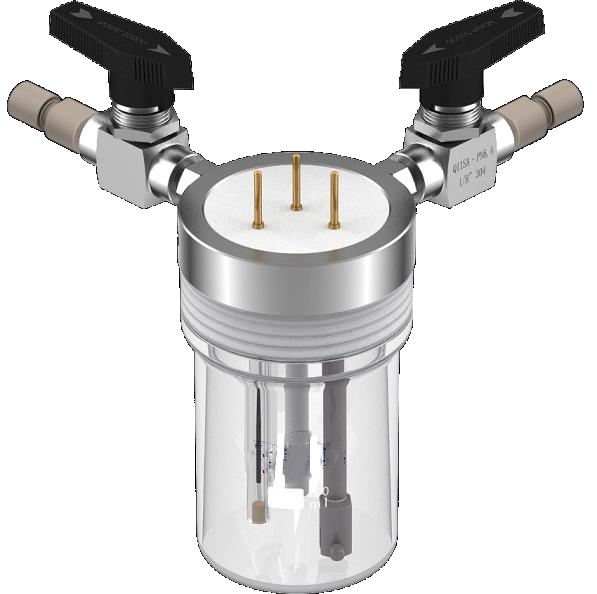

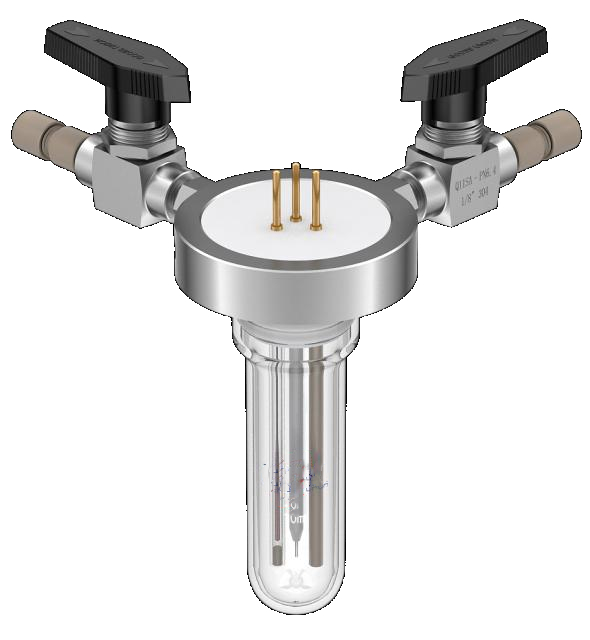

Straight and Jacketed five-port Electrochemical Cell (Absolute Sealed), Model: C002-2

Description:

• The electrochemical cell is an absolutely sealed system, which is often used in a 3-electrode system, with a customizable volume of 30ml to 500ml.
• The electrodes of the electrochemical cell can be plugged in and out through the earphone jack on the cover, so that the 3-electrode system can be absolutely sealed.
• The electrodes of the electrochemical cell must be matched with the cell body.
• This electrochemical cell cannot add sand core salt bridge or Lujin capillary, only silver silver chloride electrode can be used
• The sealed cell is equipped with valves and gas connectors, inlet direction is through the aeration device valve.
• The electrochemical cell is an absolutely sealed system, which can be vacuumed (below -100kpa) or pressurized through the valve. The bottom of the electrochemical cell should be made into a round bottom shape for pressurization, and the pressure should not be greater than 0.5MPa for safety reasons
• Jacketed cells cannot be used for pressurization!

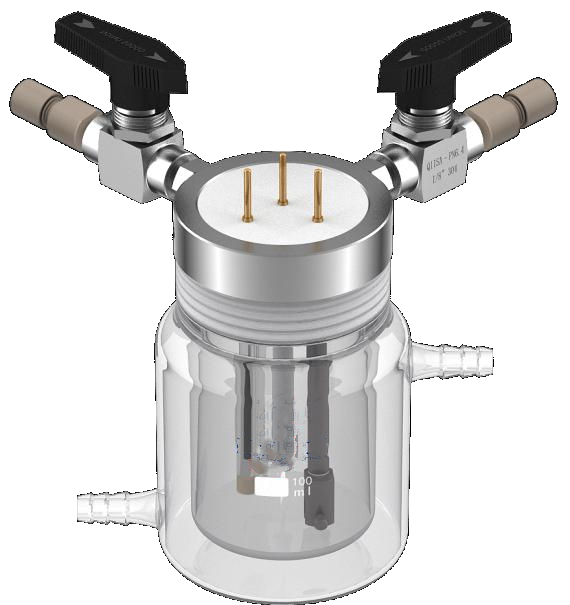

• The jacket layer allows a constant temperature through water circulation on top of the single layer design.

All sizes listed are common sizes, can be customized according to requirements.
