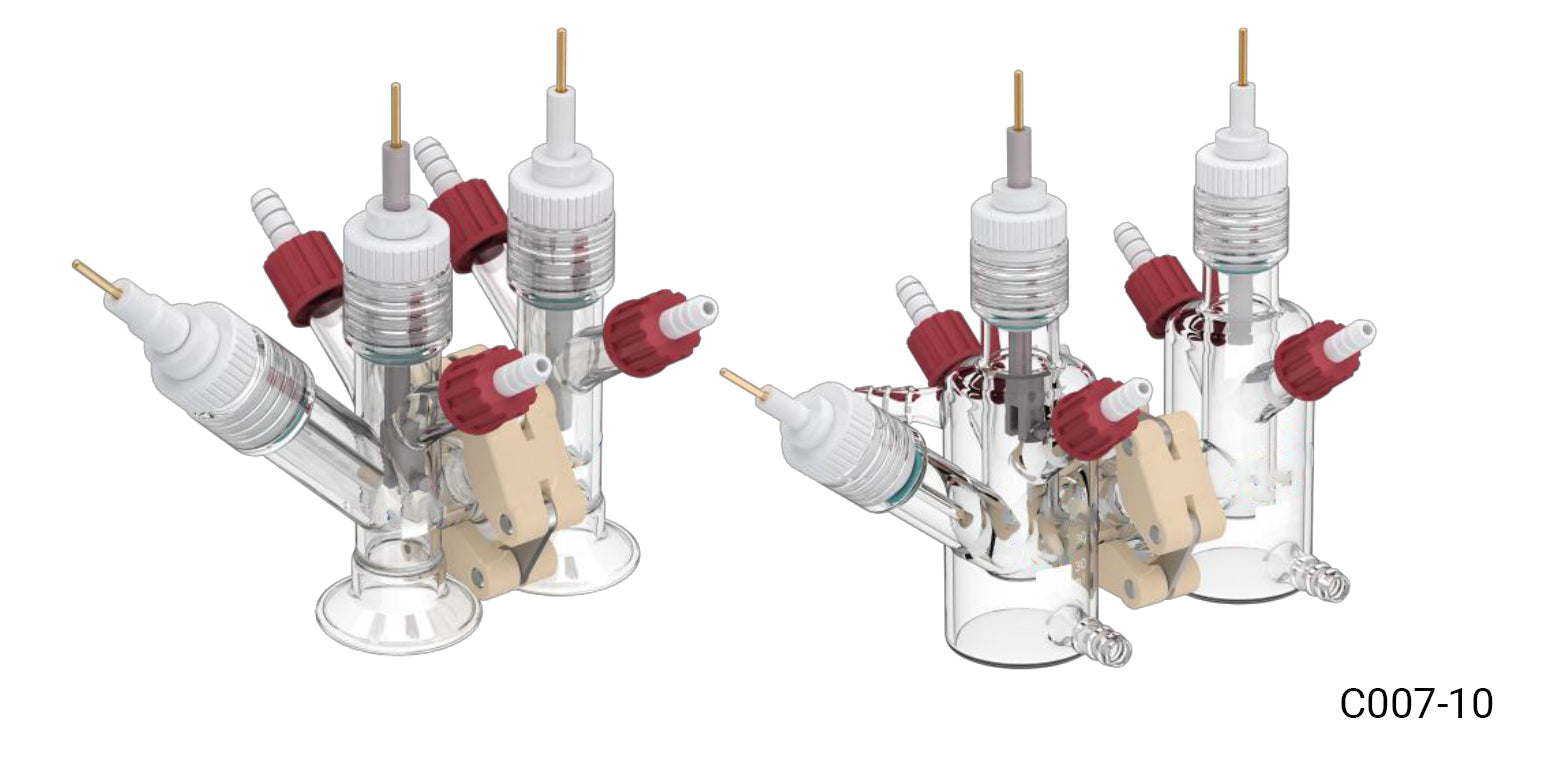

Small volume H-type replaceable membrane electrochemical cell (relatively sealed), C007-10

Description:

• The cell is made of high purity borosilicate glass.
• Electrodes need to be the longer type based on dimension of the cell.
• The single-layer cell body of the electrochemical cell has an overhead layer design, which effectively breaks the solution hiding.
• This electrochemical cell is often used in a 3-electrode system, and the single cell is 10ml.
• The electrochemical cell s have two types: relatively sealed and absolutely sealed. The cathode chamber and the anode chamber are separated by an ion membrane. The two chambers are sealed and linked by a chain, which is convenient for replacing the diaphragm. The reference electrode and the working electrode are in the same chamber, effectively reducing the R drop.
• The glass sealing part of the electrochemical cell is designed with an internal thread, and the sealing effect is achieved by tightening the PTFE and squeezing the sealing ring.
• Electrode area seals via O-rings and screws.
• The electrochemical cell can add sampling ports on the cell body.

Options

Jacket type is not available for small volume cells.

Sizes, can be customized according to requirements.
