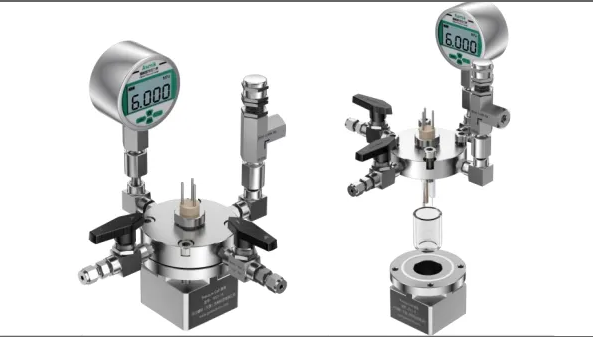

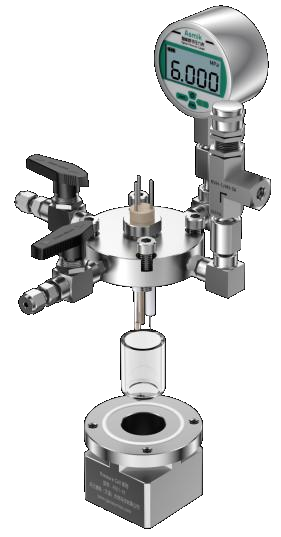

Single-chamber pressure cell (standard or With light windows or Small volume ) Model: P001-1 P001-2 P001-10

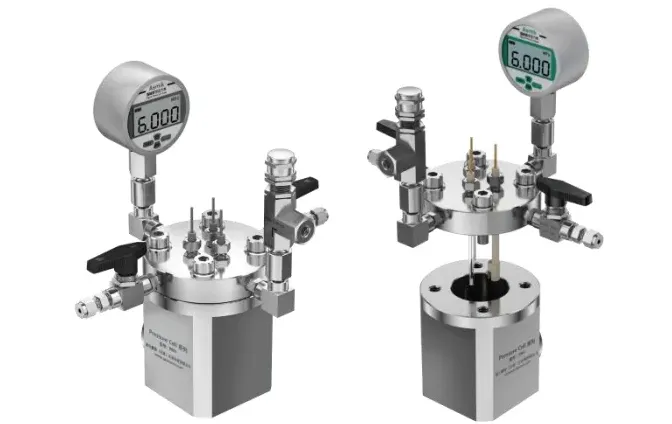

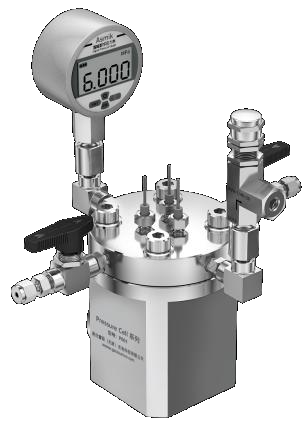

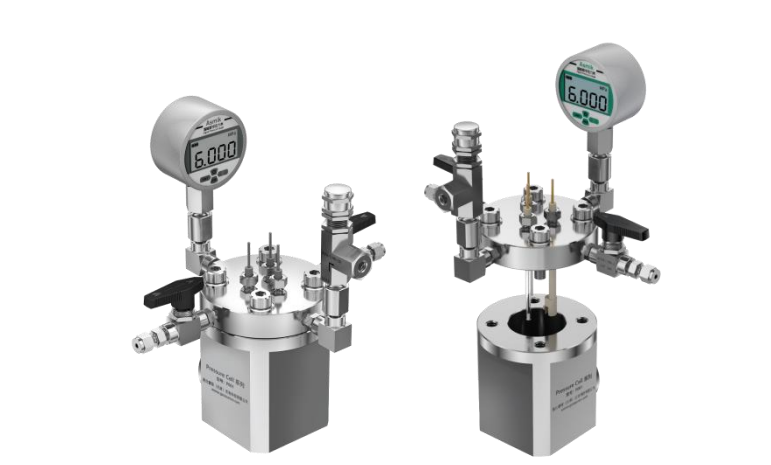

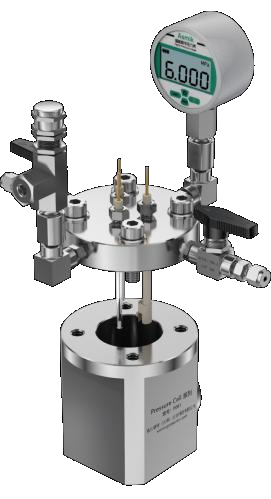

Single-chamber pressure cell (standard)

Model: P001-1

• Material: Ti • Pressure: 6Mpa • Maximum pressure: 6Mpa • Volume: 50&100ml, can also be customized according to requirements
• Valve material stainless steel 304
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)

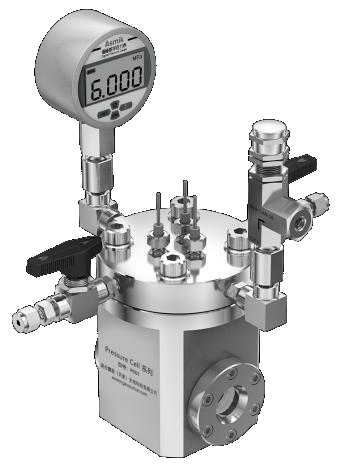

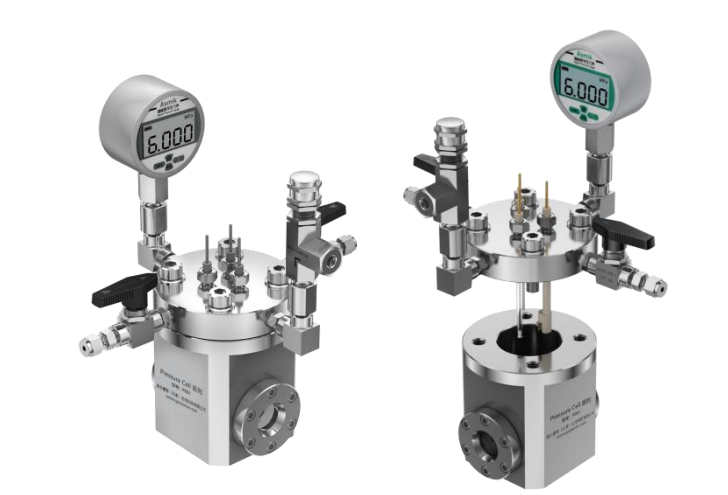

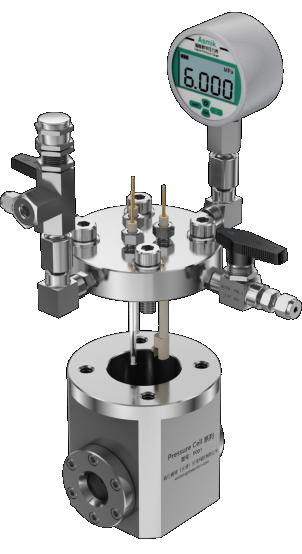

Single-chamber pressure cell (With light windows)

Model: P001-2

• The cell has a light window on the basis of the P001-1
• Material: Ti • Maximum pressure 6Mpa • Volume: 50&100ml, can also be customized according to requirements
• Photoelectric chemical pool, light window is quartz glass, transmittance > 95%
• The pool is made of high purity titanium
• Valve material stainless steel 304
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)

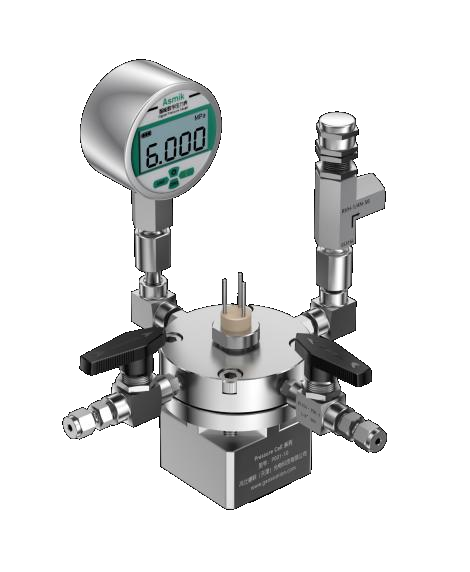

Single-chamber pressure cell （Small volume）

Model: P001-10

• Material: Ti • Maximum pressure 6Mpa • Volume: 10ml, can also be customized according to requirements
• Valve material stainless steel 304
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)

All sizes are common sizes, can be customized according to requirements.
