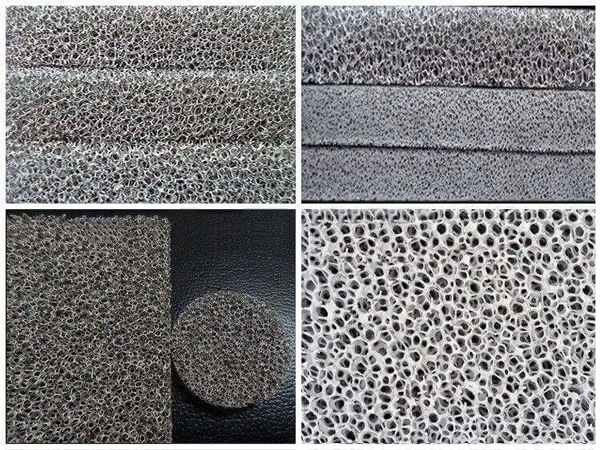

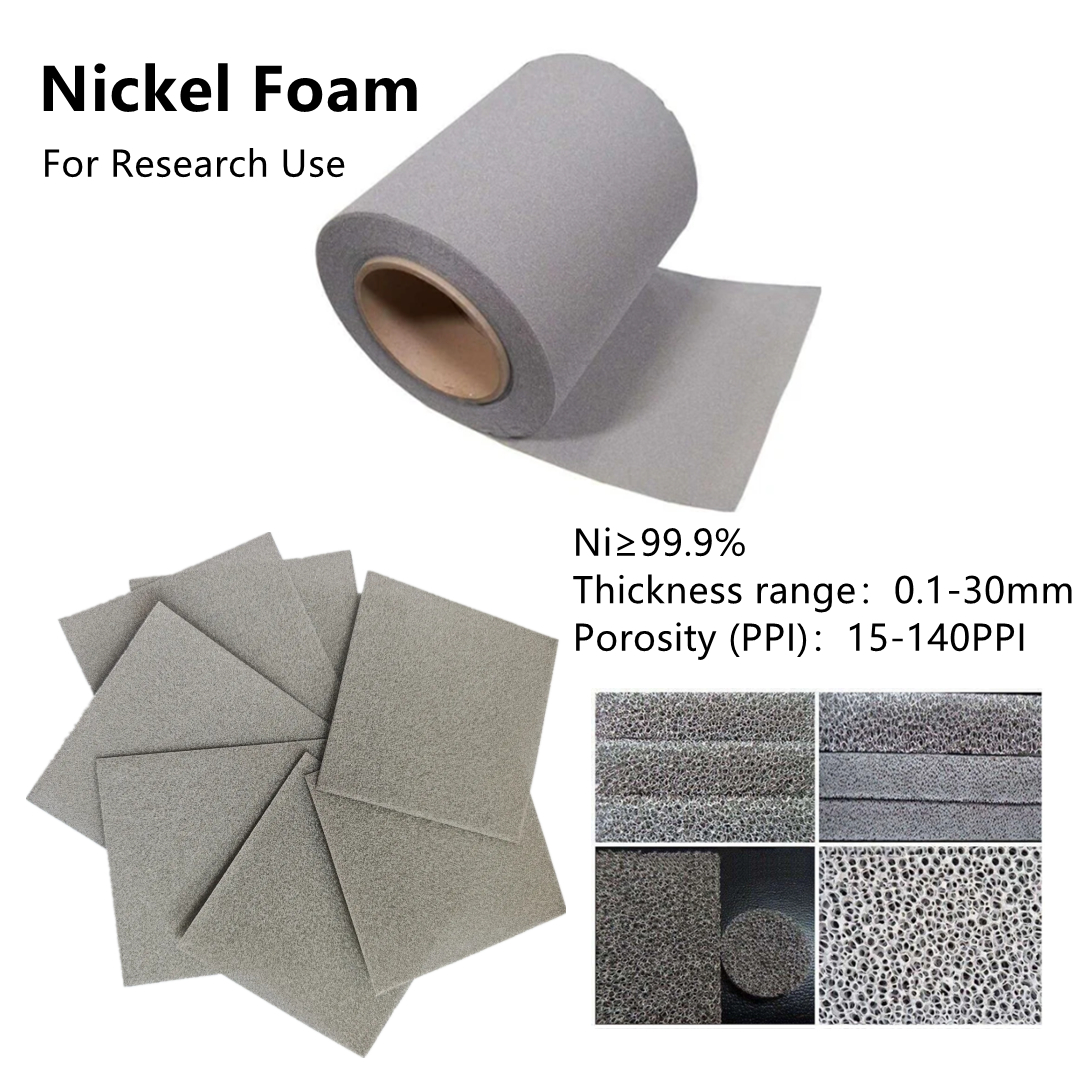

Nickel Foam, Research Grade
- Purity: ≥99.9% (3N), low trace impurities (Fe, Cu, S)
- PPI: 110 (customizable 15–140 PPI)
- Porosity: 94–96%
- Thickness: 0.1–3.0 mm, customizable
- Areal density: 350±20 g/m²

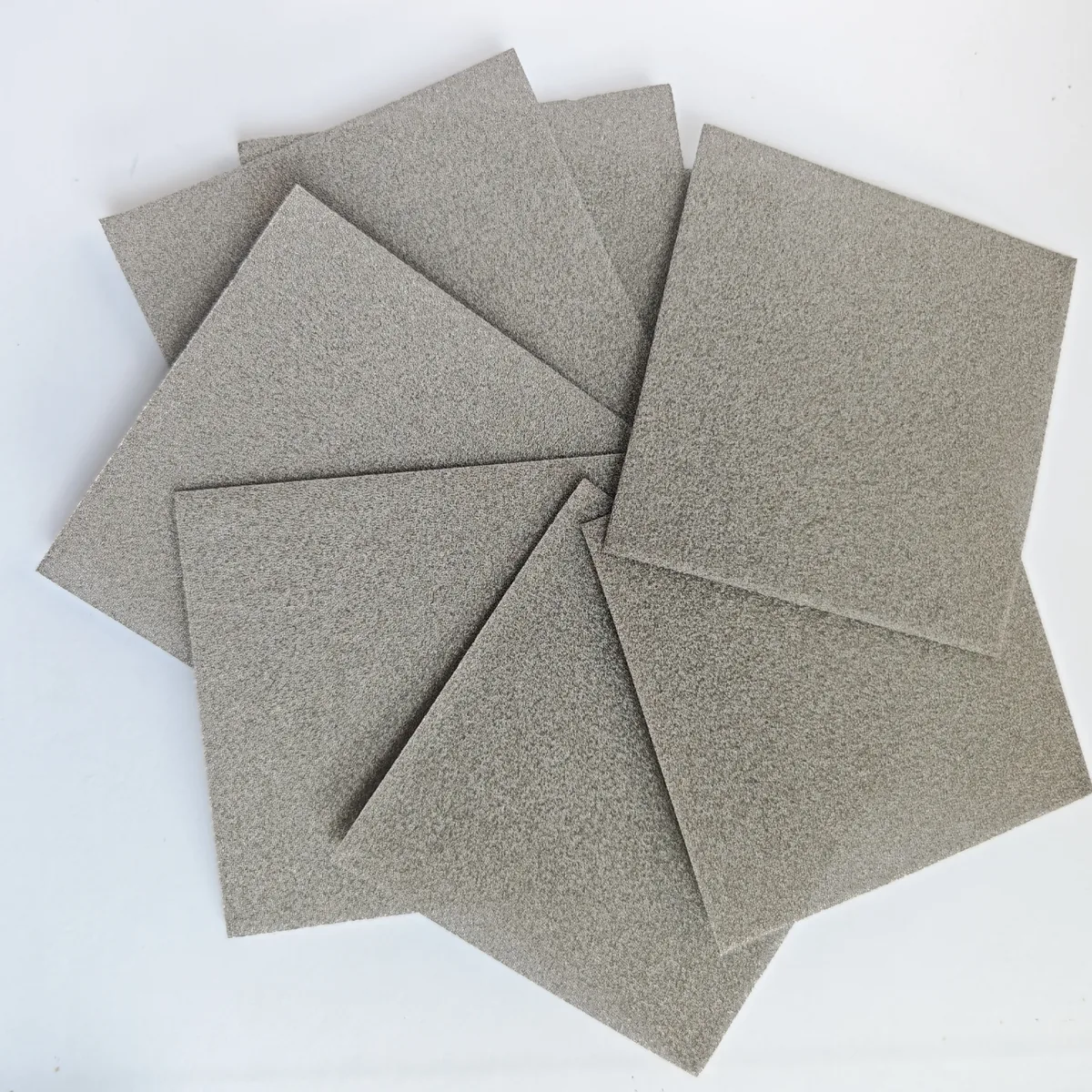

- Form: Sheets / Rolls, cut-to-size available
- Application: Lithium battery, Li-S, Li-O₂, supercapacitor, electrocatalysis (OER, HER)
- Different specifications are customizable
Thickness: 0.5 mm / 1.0 mm / 1.5 mm / 1. 7mm / 2.0mm is the most widely used thickness for lithium-ion / Li-S / Li-O₂ lab coin cell research.
(1.0 mm , 1.5mm & 1.7mm most popular for lithium battery research), customizable
Standard sheet size: 300×200 mm, thickness 1.0 mm / 1.7 mm
Competitive price with reliable quality. Welcome your inquiry.
We also supply foam iron, foam copper, Fe-Ni, Ni-Co, pure Co, Ni-Mo, Cu-Ni, Ni-Ag, Ni-Zn, Ni-Al foams and other porous metal foams. Please feel free to contact us if you are interested.
