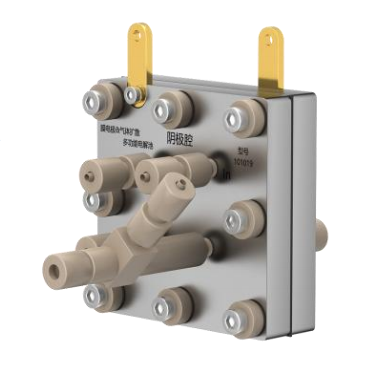

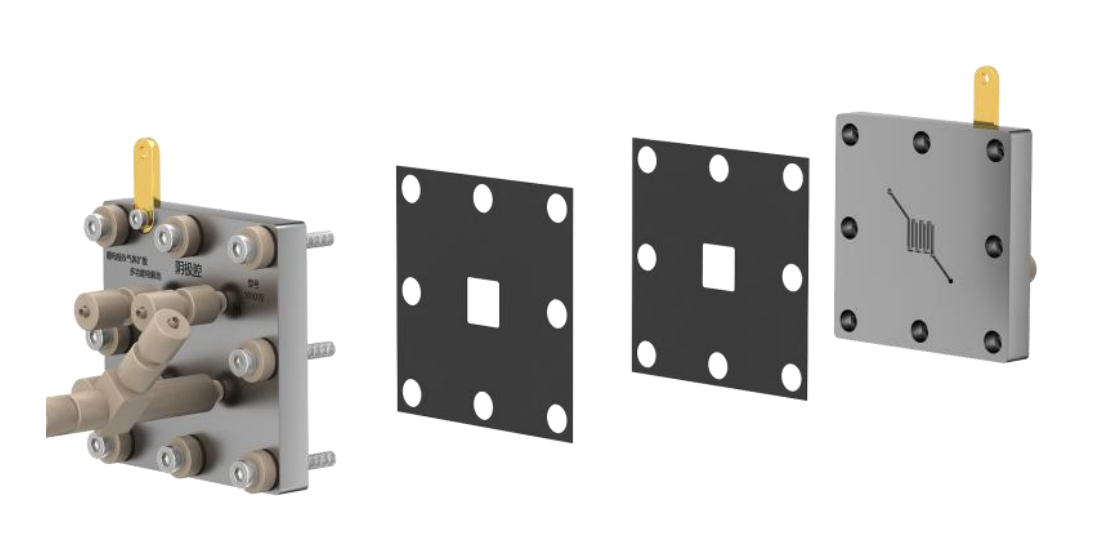

As a new type of gas diffusion cell, the cell is a brand-new improvement on the basis of the membrane electrode cell. MEA chamber is used for gas chamber.
The commonly used serpentine flow channel greatly increases the contact time between the reaction gas and the cathode and improves the reaction efficiency. The new cathode chamber flow path design will be customized
The distance between the working electrode and the opposite electrode is reduced to 0.4mm.
Plate material: high purity titanium
Runner type: Serpentine runner (default), support for custom runner
Distance between working electrode and opposite electrode: 0.4mm
Electrode reaction size: 10*10mm, 20*20mm, 30*30mm, etc
Working electrode: Gas diffusion electrode (self-provided)
Reference electrode: Silver chloride electrode (standard)
Comparison electrode: Porous materials such as iridium oxide mesh (own)
All sizes listed are common sizes, can be customized according to requirements.
