** Optional alternative pump heads available.**

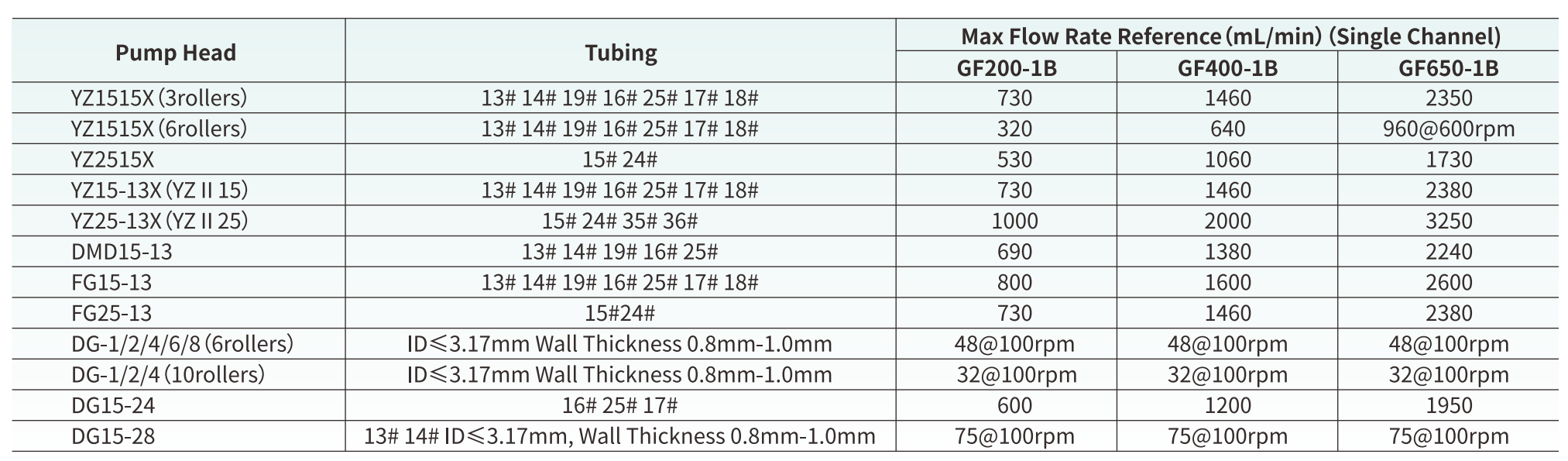

**Max. reference flow (single‑channel): 3250 mL/min**
1. Rotation Speed Range: 0.01‑650 rpm
2. Speed Resolution: 0.01 rpm (<100 rpm); 0.1 rpm (≥100 rpm)
3. Speed Accuracy: ±0.1% , 0.001 mL/min
4. Running Direction: Clockwise or Counter‑clockwise ( 0 – 360°)
5. Single Dispensing Volume: 0.001‑9999 mL
6. Operating Modes: Continuous speed, continuous flow, timed speed, timed flow, single‑dose mode
7. Control Method: Touch screen / physical keypad, foot switch, external signal, communication control
8. External Control: Start/stop & direction: 5‑24 V signal; Speed control: 4‑20 mA / 0‑5 V / 0‑10 V / 0‑10 kHz
9. Communication: RS485, Modbus RTU / OEM protocol
10. Display: 3.5‑inch color LCD screen
11. Power Supply: AC100‑240V (±10%), 50/60 Hz
12. Power Consumption: 65 W

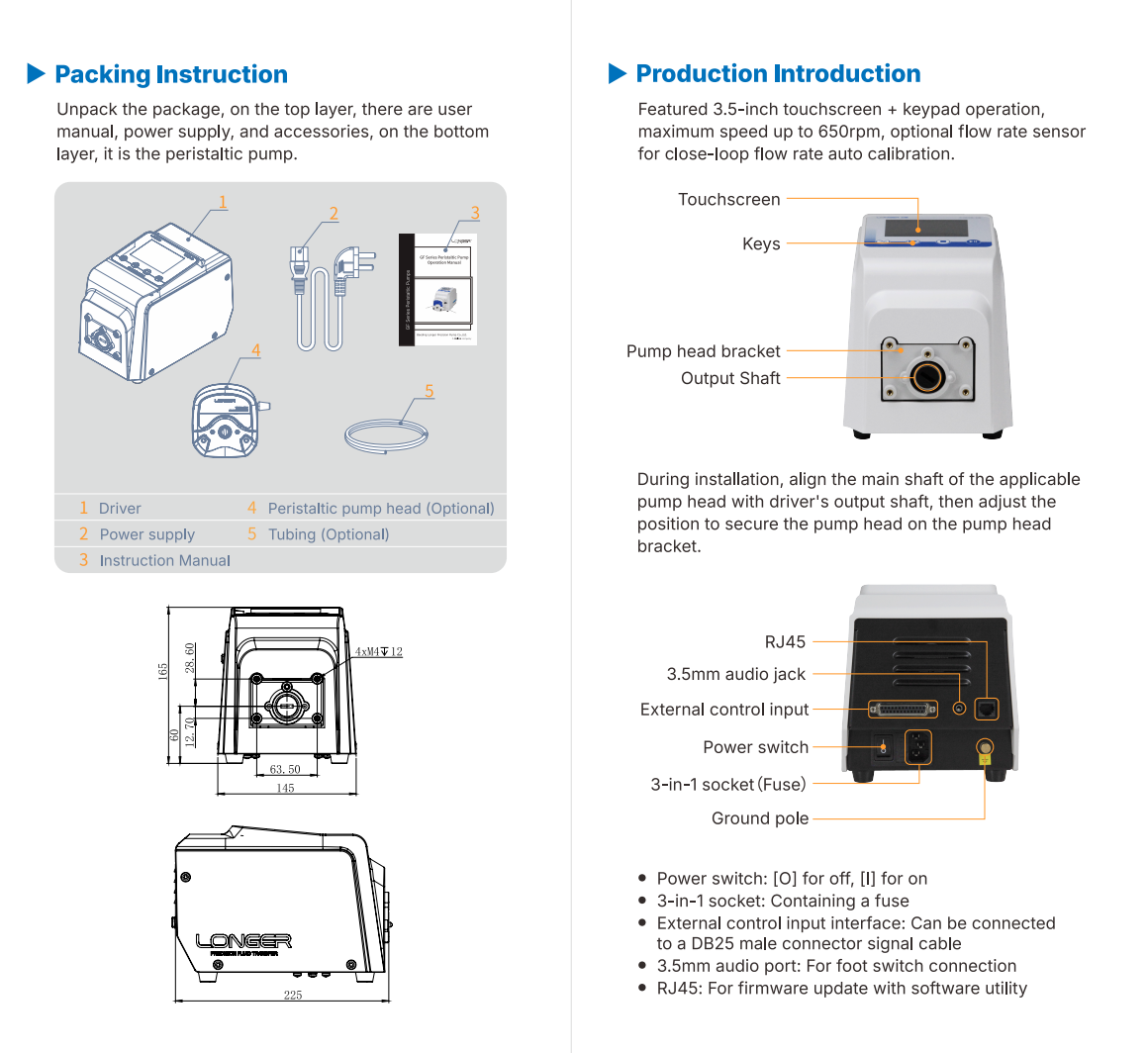

13. Dimension: 225 mm × 145 mm × 165 mm
14. Weight (Driver only): 2.85 kg
15. Protection Grade: IP31
16. Operating Environment: 0‑40 ℃, RH ≤80% non‑condensing
