Product Description

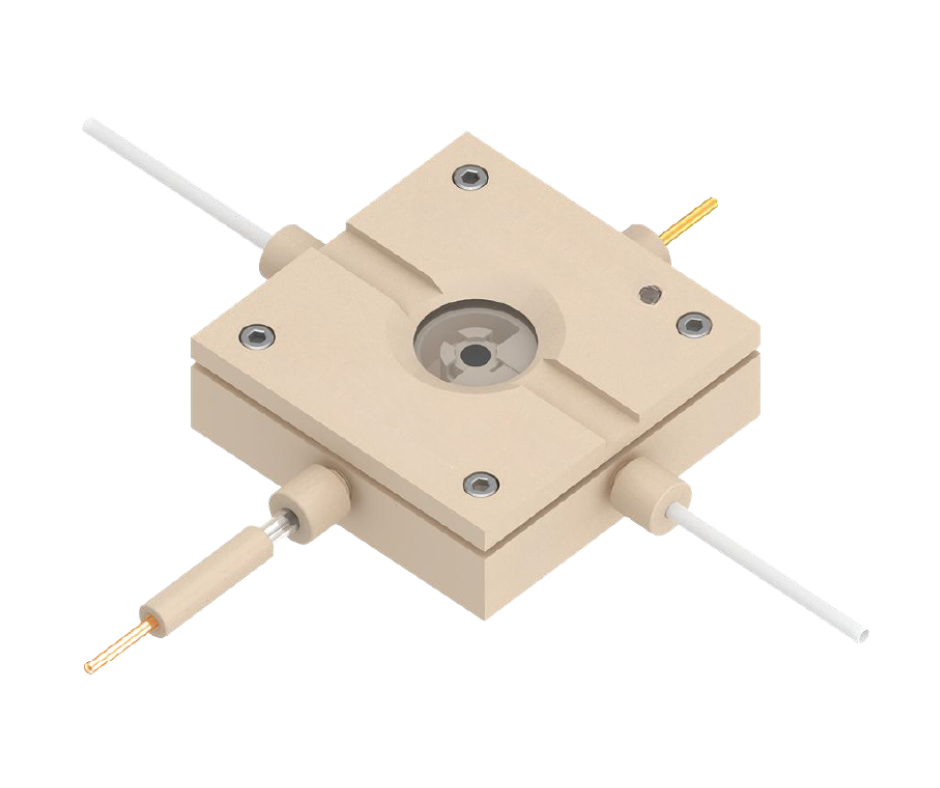

The in-situ electrochemical cell is designed for studying the in-situ spectroscopic and morphological changes of electrode materials during electrochemical experiments. Therefore, the working electrode (WE) is positioned directly beneath a transparent viewing window, allowing optical instruments to “see” the working electrode through the upper quartz window. ·
Product Features
- This electrochemical cell comes standard with a 5mm glassy carbon working electrode, a reference electrode, and a counter electrode, suitable for three-electrode experiments.
- Electrodes of other materials and sizes can be customized as required. ·
- The main body of this electrochemical cell is made of PEEK material (Ensinger™ TECAPEEK – medical-grade) combined with high-purity iron. ·
- The reference electrode for this electrochemical cell is a silver chloride electrode (or silver-silver ion electrode), and the counter electrode is a platinum wire electrode with a diameter of mm. ·
- The working electrode of this electrochemical cell is a disc-shaped electrode (such as gold disc, platinum disc, glassy carbon, graphite, thermally treated graphite, etc.), and it needs to be purchased separately. ·
- The electrochemical cell can be easily filled with electrolyte through injection. This electrochemical cell can be quickly assembled and disassembled for easy cleaning.
Specifications
- The distance between the working electrode and the window is <3mm.
- The diameter of the window for this electrochemical cell is 25mm.
