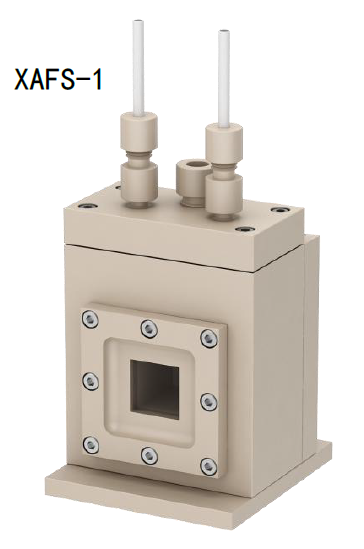

In situ X-ray absorption spectroscopy reaction cell, Model: XAFS

Description

Product Description

This is an in situ electrochemical reaction cell suitable for synchrotron X-ray absorption spectroscopy.

Product Features

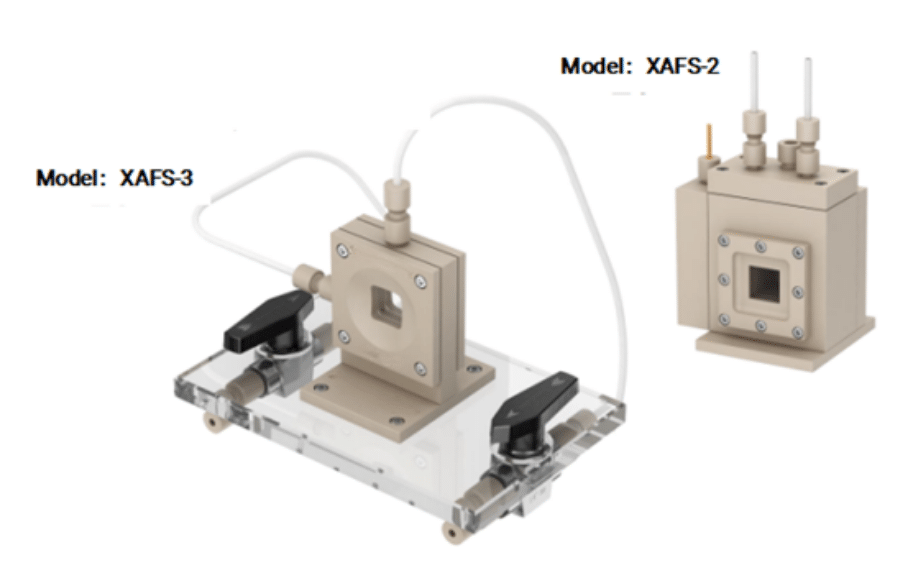

• The cell is divided into single cell, dual cell (H-type with exchange membrane), and XAFS-3 model is suitable for gas diffusion.
• The XAFS-2 adopts an H-type exchange membrane structure, which enables the separation of the anode and cathode.
• The cell is equipped with intake and exhaust ports to meet the requirements of reactions for different atmospheric conditions and air tightness.
• The device can be configured as two-electrode or three-electrode system, with the working electrode being specially customized, and the other two electrodes can be customized as needed.
• The overall installation of the device is simple and quick, and it is also easy to clean.
• The cell is made of PEEK (Ensinger™ TECAPEEK – medical-grade) , and its volume can be customized according to requirements.
• The optical window is made of Kapton film.

Specifications

• Model

  XAFS-1

  XAFS-2

  XAFS-3
