Description

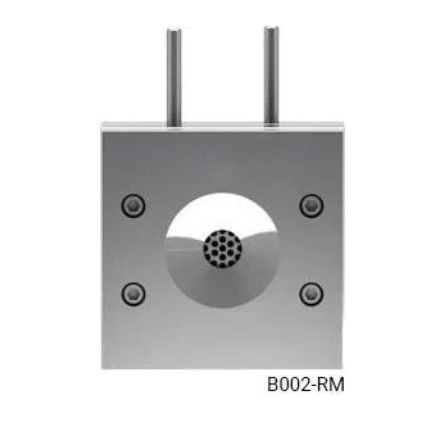

The In-situ Raman Electrochemical Cell is designed for studying the in-situ spectra and morphological changes of electrode materials in electrochemical experiments.
Material and Assembly: Constructed with high-purity titanium material.
Versatile Testing: Features both positive and negative poles, separated by a membrane (to be provided by the user).
- Demonstrates outstanding sealing capability and assembly reproducibility. Evaluation is facilitated by adjusting the load using a spring.
- Easy to dismantle without damaging the sample after charge/discharge testing.
- Quick assembly and disassembly for convenient cleaning.
Specifications
- Connectable to charge/discharge equipment, suitable for a wide range of battery cycling and characteristic tests.
- Easy to use, requiring only the tightening of screws, with excellent chemical corrosion resistance ensured by O-rings.
- Assembled in a glovebox, the cell can be used outdoors.
Configurable Electrodes:
- Working electrode distance from the optical window: <2mm.
- Optical window diameter: 8mm.
- Dimensions of the electrochemical cell: 50*50*20mm.
