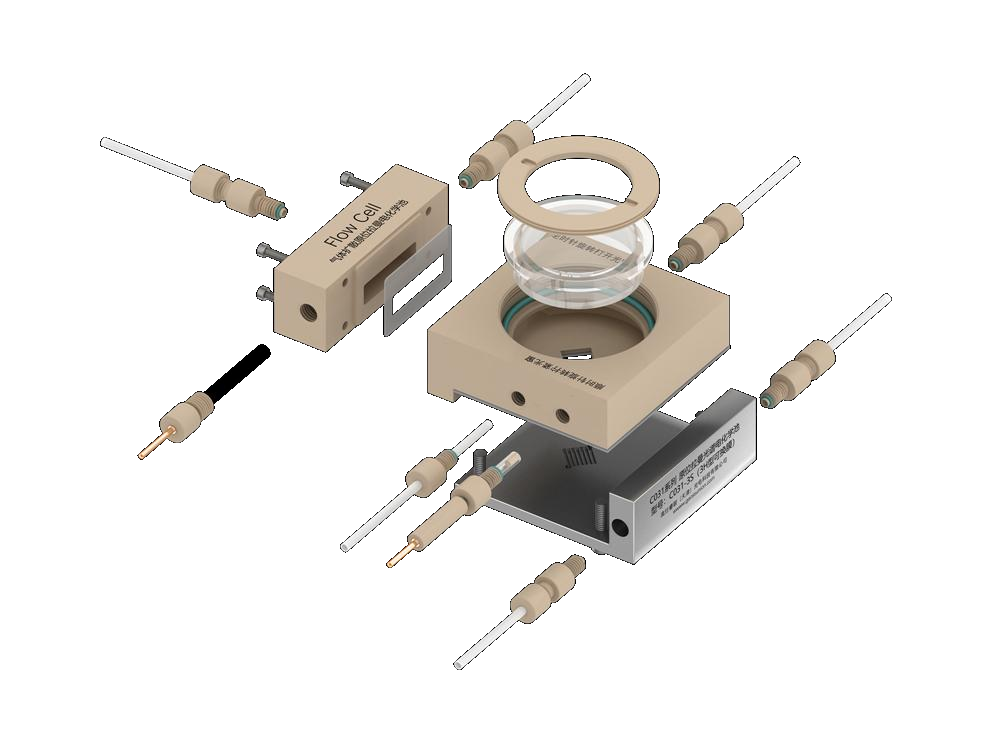

This is an upgrade of the C031-3 in-situ Raman electrochemical cell, and the gas chamber adopts a serpentine flow channel design to increase the contact time between the gas and the catalyst, so that the gas can participate in the experimental reaction more effectively.
• The two chambers of the electrochemical cell are sealed with screws to facilitate the replacement of the diaphragm, and the cathode chamber and anode chamber are isolated by ionic membrane (user's own) to effectively avoid the influence of the anode on the cathode.
• The electrochemical cell adds a serpentine gas channel in the lower layer of the cathode chamber, so that the electrochemical cell has the function of gas diffusion
• The electrochemical cell can be used for in situ electrochemical testing of flow systems, or can be filled with electrolytes simply by injection.
• Working electrode distance from the light window: < 6mm
• Light window diameter: 37mm
• Working electrode area 1cm²; Can be customized upon request
• The working electrode is usually used as a gas diffusion electrode to match the gas channel. Sheet metal, glass carbon sheet, ITO, FTO and other sheet materials can also be used
Material for work electrode. The working electrode material must be purchased separately.
