Product Description

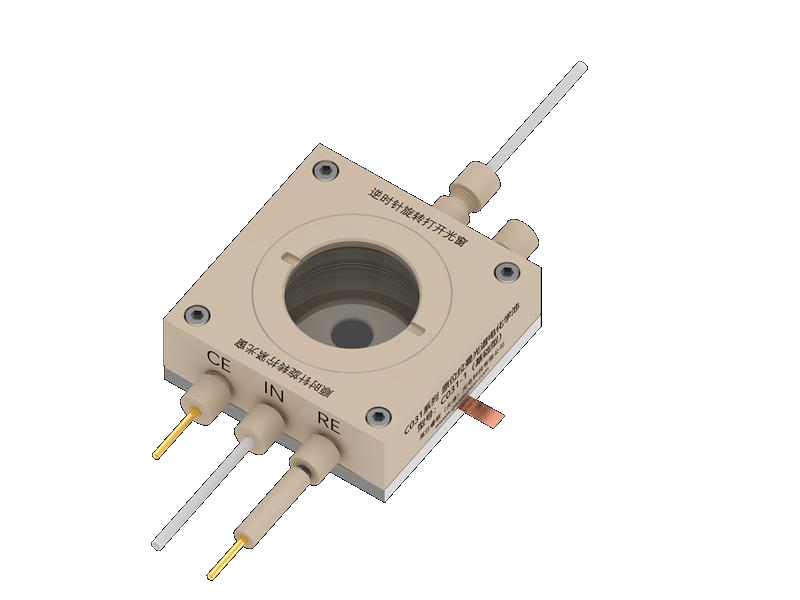

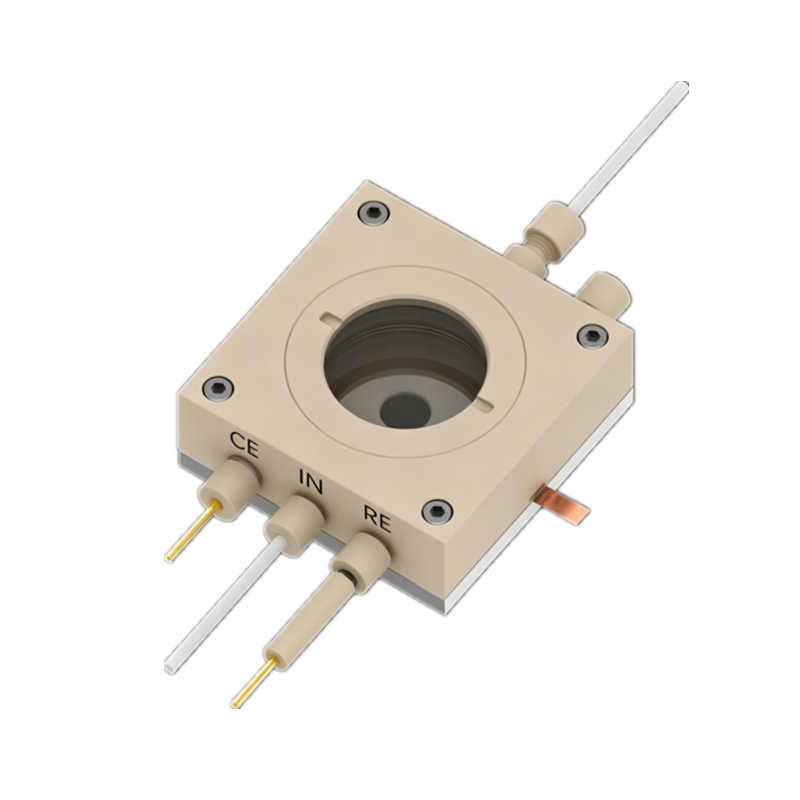

The in-situ electrochemical cell is designed for studying the in-situ spectroscopic and morphological changes of electrode materials during electrochemical experiments. Therefore, the working electrode (WE) is positioned directly beneath a transparent window. This arrangement allows optical instruments to “see” the working electrode through the upper quartz window. The maximum diameter of the working electrode is 10mm. The testing cell is equipped with a reference electrode and a counter electrode, suitable for three-electrode experiments.
Product Features
- Reference electrode for this electrochemical cell is a Ag/AgCl electrode (or Ag/Ag+ electrode).
- The counter electrode is a platinum wire electrode with a diameter of 0.5mm.
- The working electrode of this electrochemical cell is a disc-shaped electrode (such as gold disc, platinum disc, glassy carbon disc, transparent conductive oxide (TO), fluorine-doped tin oxide (FTO), carbon paper, etc.).
- The electrochemical cell can be easily filled with electrolyte through simple injection.

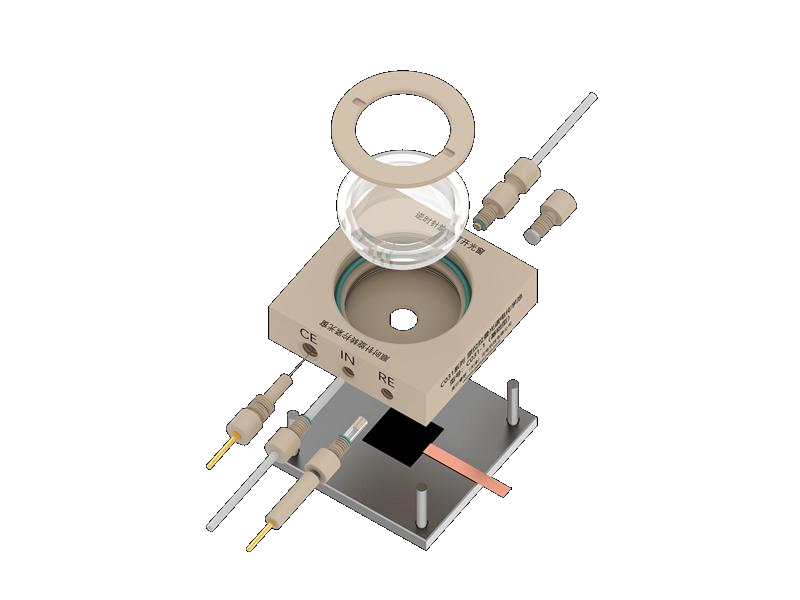

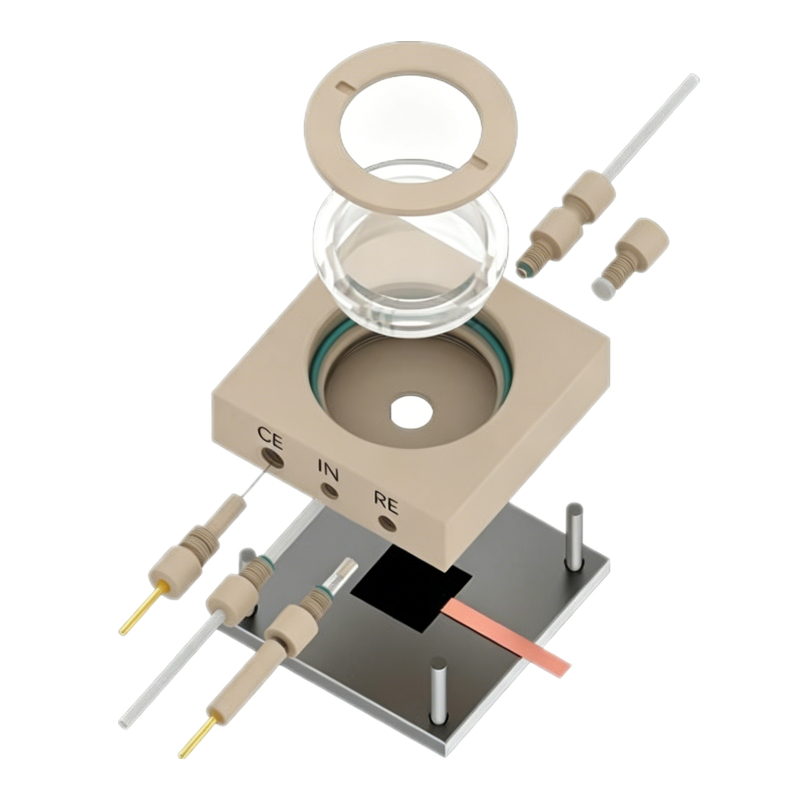

- The assembly and disassembly of this electrochemical cell are quick and convenient for cleaning.
- The distance between the working electrode and the window is <6mm.
- The diameter of the window for this electrochemical cell is 37mm.
- • Working electrode area 1cm²; Can be customized upon request.
