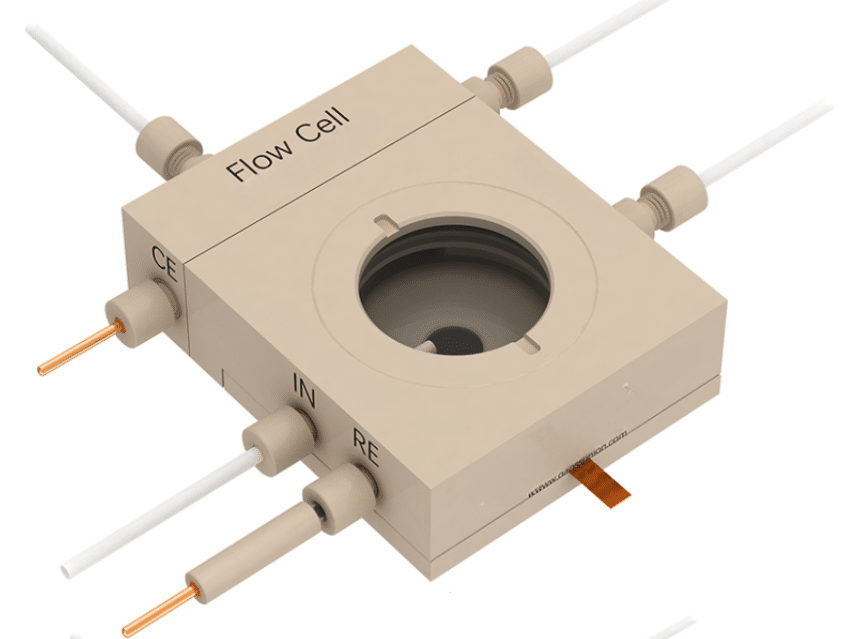

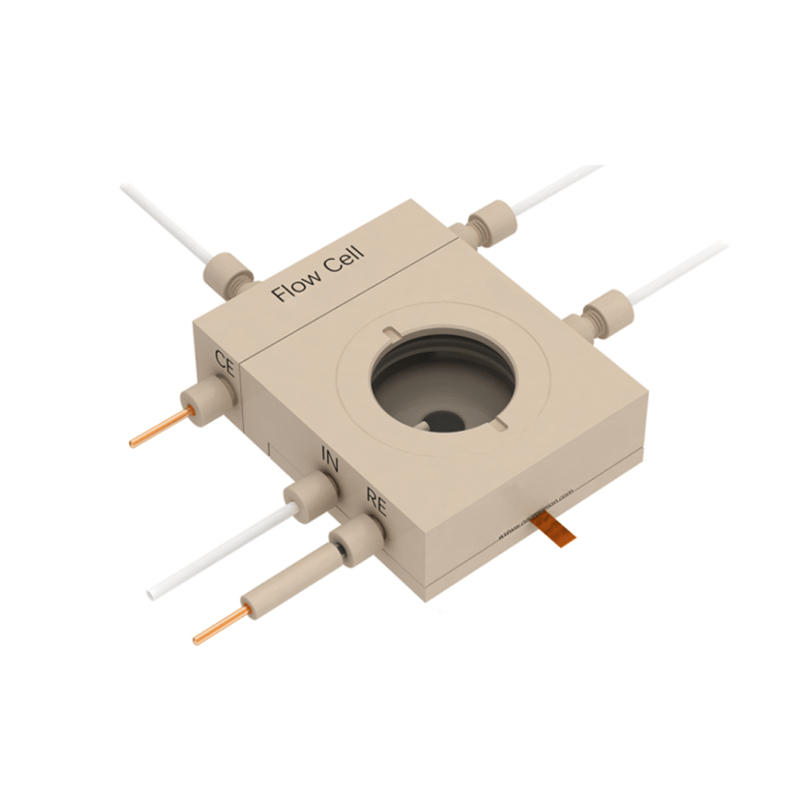

• The in situ electrochemical cell is designed to study the in situ spectral and morphological changes of electrode materials during electrochemical experiments.
The working electrode (WE) is placed directly below the perspective window so that the optical instrument can observe the working electrode through the quartz window.

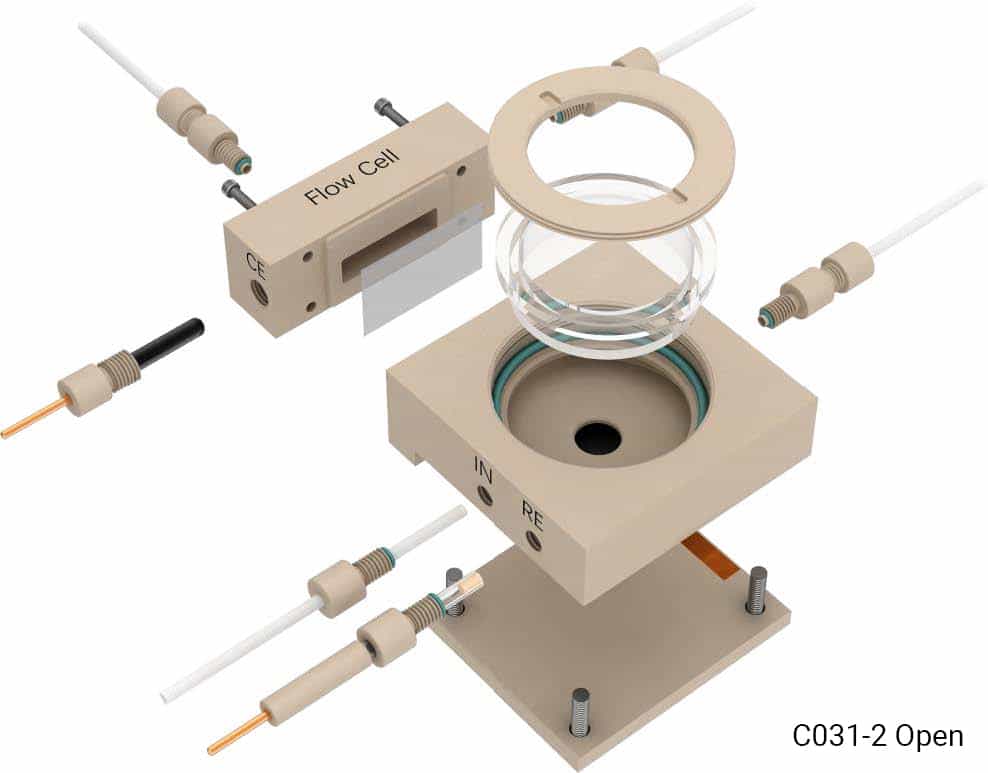

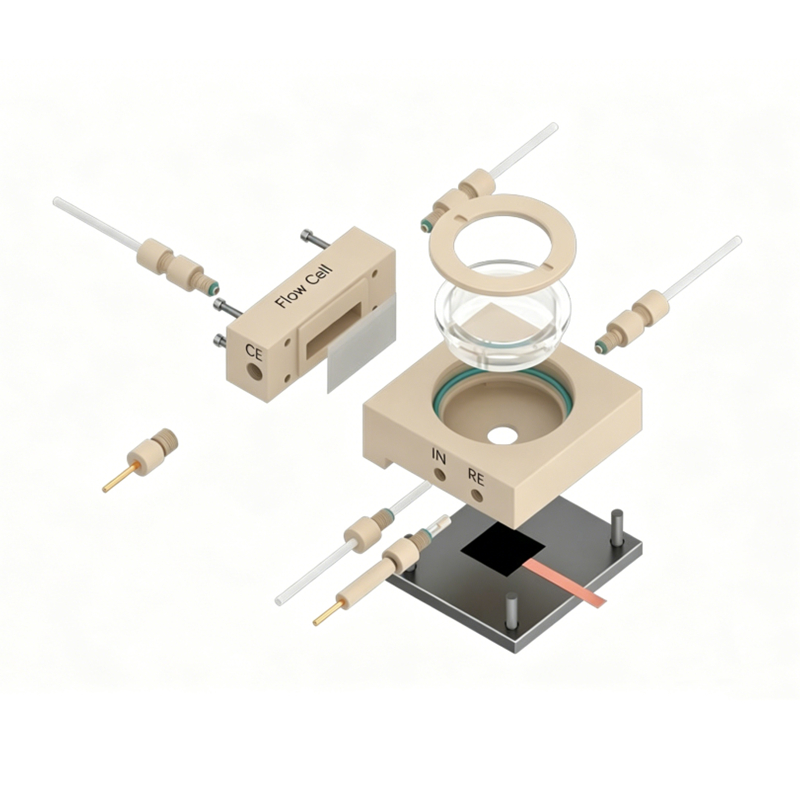

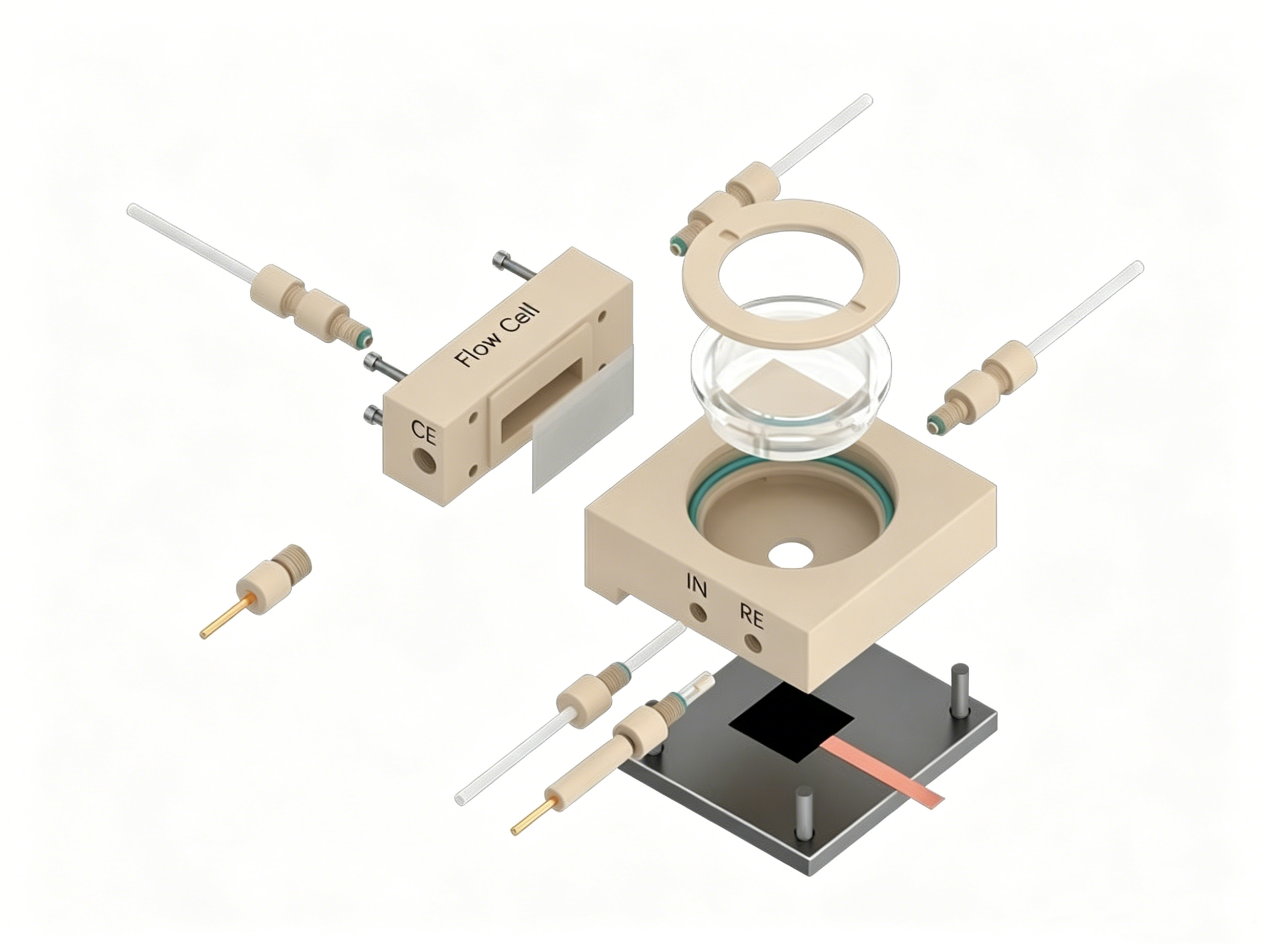

• The main body of the electrochemical cell is made of PEEK material; It can be quickly assembled and disassembled for easy cleaning.
• The two chambers of the electrochemical cell are sealed with screws to facilitate the replacement of the diaphragm, and the cathode chamber and anode chamber are isolated by ionic membrane (user's own) to effectively avoid the influence of the anode on the cathode.
• The electrochemical pool reference electrode is in the same chamber as the working electrode to effectively reduce R-drop.
• The electrochemical cell can be used for in situ electrochemical testing of flow systems, or can be filled with electrolytes simply by injection.
• Working electrode distance from the light window: < 6mm
• Light window diameter: 37mm
• Working electrode area 1cm²; Can be customized upon request
• Support sheet working electrode (gold sheet platinum sheet, glass carbon sheet, ITO, FTO, carbon paper, etc.)
• Default standard AgCl reference electrode and imported graphite rod electrode;
It can be replaced with ag+ reference electrode and platinum wire electrode without difference.
