Description

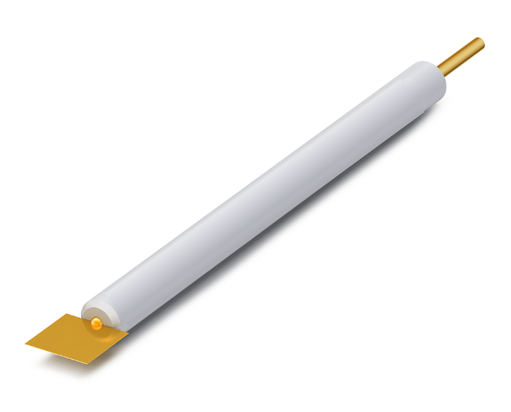

Gold Foil Counter Electrode
Gold Foil Thickness: 0.1mm ~ 1mm, customizable length and width.
Gold Foil Purity: 99.999%
Gold Foil Origin: USA, Japan
Sheath Material: PTFE Sheath
Diameter: 6mm
Sheath Length: 60mm, 80mm, 100mm, 120mm
Gold Foil Shape: Circular or square
One end of the gold foil is welded with platinum wire to embed it within the PTFE rod. The electrode’s tail is capped with a gold-plated wire column to prevent oxidation.
Commonly used in conjunction with a rotating disk electrode system, utilizing very high-purity gold wire. It offers a larger surface area and stronger inertness compared to platinum wire. Effective in reducing hydrogen evolution.
