Performance index
• Flow setting range: 0.01~50.00mL/min, set step size: 0.01mL/min
• Flow accuracy: ±1.0%(10.00mL/min, 8.5MPa, water, room temperature) • Flow stability: RSD≤0.3%(10.00mL/min, 8.5MPa, water, room temperature) • Maximum working pressure: 30MPa(0.10~20.00mL/min)20MPa(20.01~50.00mL/min) • Pressure accuracy: The display pressure error is within ±3% or 0.5MPa
• Pressure pulsation: ≤0.4MPa (flow 10.00mL/min, pressure 8.5±1.5MPa)
• Sealing of the pump: pressure 30MPa, time 10min, pressure drop is not more than 1.5MPa • Communication mode: 485 interface communication

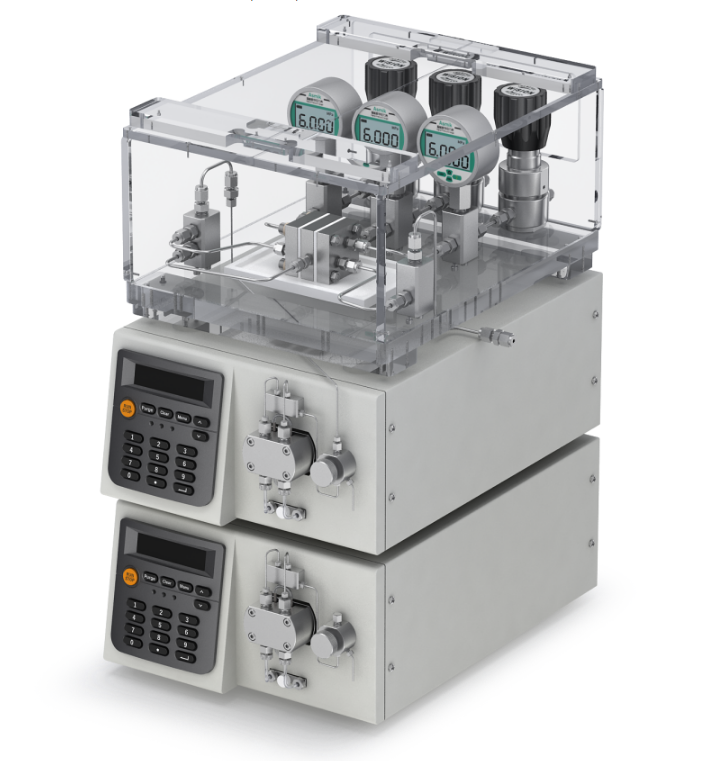

Gas diffusion high pressure flow test tank
Model: PFC-1\PFC-2
Flow Cell indicator
• Cell material: Ti • Cell volume: 1ml • Cell size: 50mm×50mm
• Internal channel: 10×10×10
Physical specification
• Weight: 12kg • Power: AC 220V(±10%), 50Hz • Power consumption: 200W
• Size: 420mm×300mm×175mm(length × width × height)
Model: PFC-1
Model: PFC-2
| Type | Specifications | Remark |
| PFC-1 | 10*10 | Same channel for anode and cathode |
| PFC-2 | 10*10 | Separate channel for anode and cathode |
All sizes are common sizes, can be customized according to requirements.
