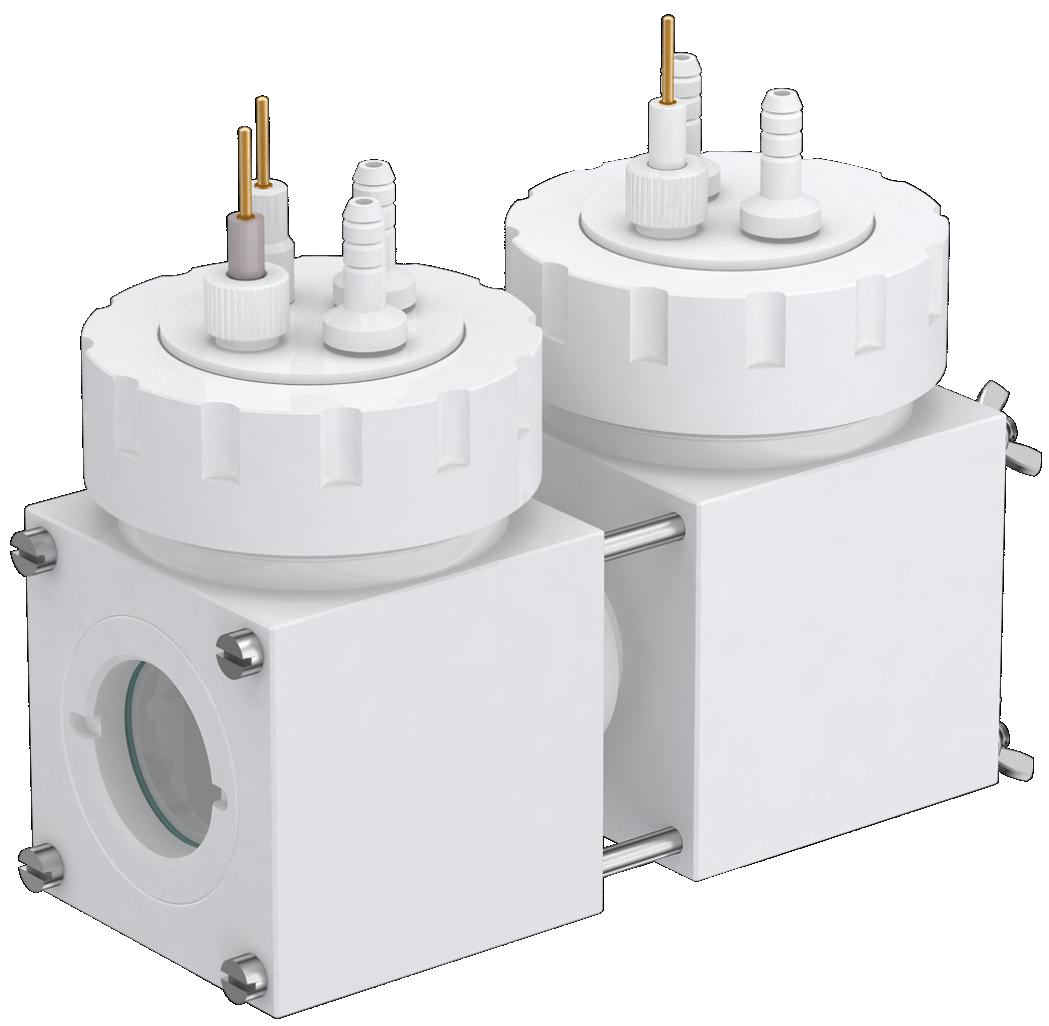

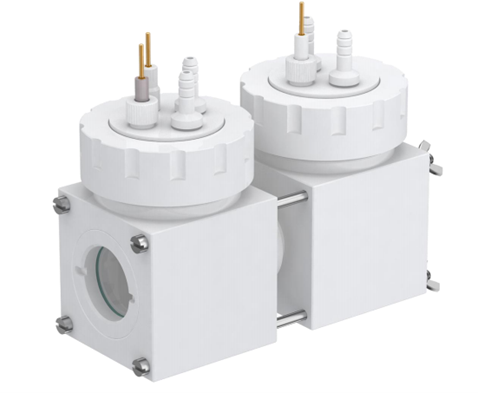

Full PTFE H-type replaceable membrane photoelectrochemical cell (relatively sealed), C027-1

Description:

• The body of the cell is made of PTFE.
• This cell is often used in a 3-electrode system, with a customizable volume of 30ml to 500ml.
• Electrodes need to be the longer type based on dimension of the cell.
• The cathode chamber and anode chamber of the electrochemical cell are separated by an ion membrane (prepared by the user), and the two chambers are sealed and connected by nails, which is convenient for replacing the diaphragm. The reference electrode and the working electrode are in the same chamber, effectively reducing the R drop.
• The top electrodes holder is 360-degree rotatable, made of PTFE, allowing precise alignment of electrodes with the channels (generally parallel to the membrane), and seal by screwing on the PTFE outer cover.
• Electrode area seals via O-rings and screws.
• The electrochemical cell is equipped with a bubbler that can aerate below the liquid surface, creating different atmospheres for various experiments.For example, direct aeration is used for carbon reduction, and L-aeration is used for nitrogen reduction.

 Dimension:

All sizes listed are common sizes, can be customized according to requirements.
