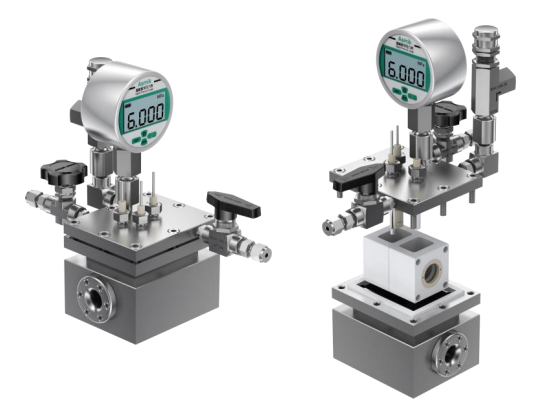

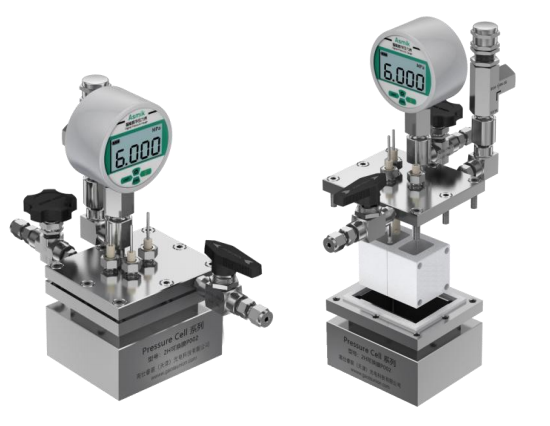

Two-compartment high voltage chemical cell (internal replaceable membrane)
Model: P002-1
• Material: Ti • Maximum pressure 6Mpa • Volume: 20+20ml • Valve material is stainless steel 304
• Monomer volume 20ml, can also be customized according to requirements
• Three electrode system
• The reference electrode and the working electrode are in one chamber, and the contrast electrode is in a separate chamber
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)

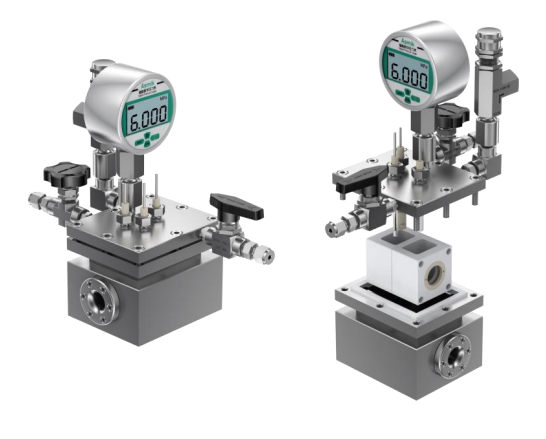

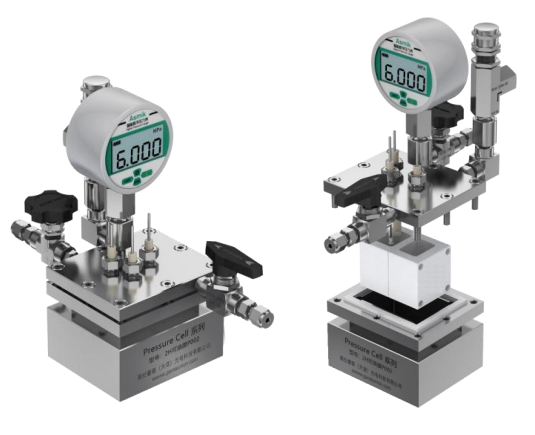

Two-compartment high voltage chemical cell (internal replaceable membrane with light windows)
Model: P002-2
• The cell has a light window on the basis of P002-1
• Material: Ti • Maximum pressure 6Mpa • Volume: 20+20ml • Light window quartz glass, transmittance > 95%
• Valve material is 304 stainless steel
• Monomer volume 20ml, can be customized according to requirements
• Three electrode system
• The reference electrode and the working electrode are in one chamber, and the contrast electrode is in a separate chamber
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)
| Type | Specifications |
| P002-1 | 20+20 ml |
| P002-3 | 20+20 ml（With light windows） |
All sizes are common sizes, can be customized according to requirements.
