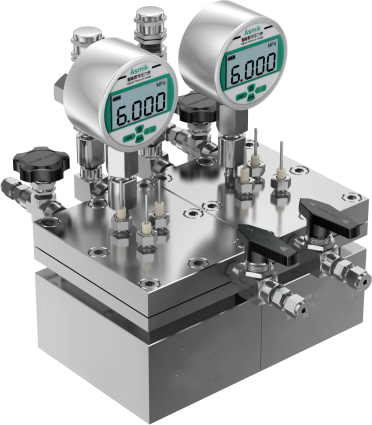

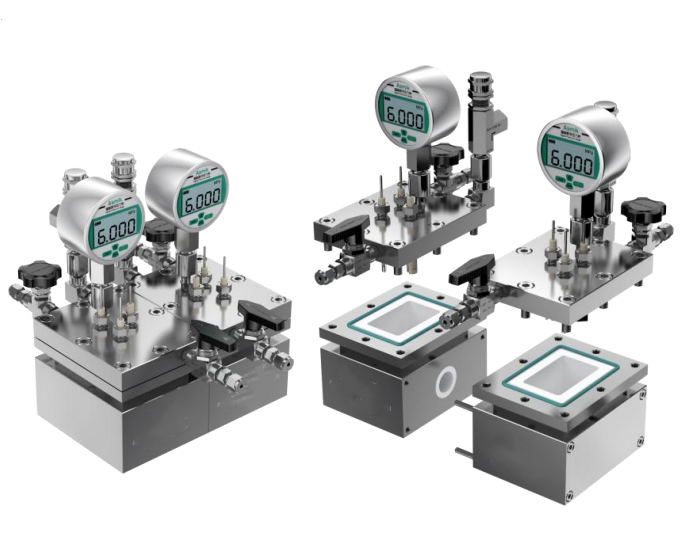

Dual-chamber pressure cell (Externally replaceable membrane，Externally replaceable membrane with light windows) Model:P003-1 P003-2

Two-compartment high voltage chemical cell (external replaceable film)

Model: P003-1

• Material: Ti • Maximum pressure 6Mpa • Volume: 50+50ml, 100+100ml • Valve material is 304 stainless steel

• Three electrode system

• The reference electrode and the working electrode are in one chamber, and the contrast electrode is in a separate chamber

• The reference electrode is a silver chloride electrode (purchased separately)

• The contrast electrode is a platinum sheet electrode (purchased separately)

• The working electrode is an electrode holder (purchased separately)

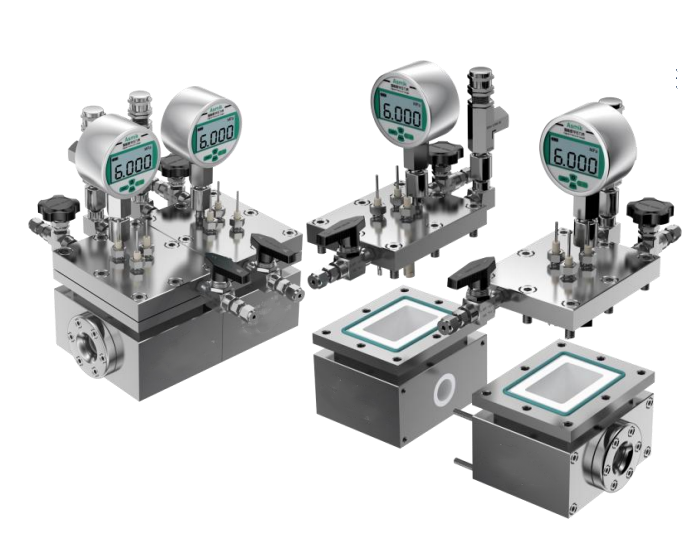

Two-compartment high voltage chemical cell (Externally replaceable membrane with light windows)

Model: P003-2

• The cell has a light window on the basis of P003-1
• Material: Ti • Maximum pressure 6Mpa • Volume: 50+50ml, 100+100ml • Light window quartz glass, transmittance > 95%
• Valve material is 304 stainless steel
• Three electrode system
• The reference electrode and the working electrode are in one chamber, and the contrast electrode is in a separate chamber
• The reference electrode is a silver chloride electrode (purchased separately)
• The contrast electrode is a platinum sheet electrode (purchased separately)
• The working electrode is an electrode holder (purchased separately)

ll sizes are common sizes, can be customized according to requirements.
