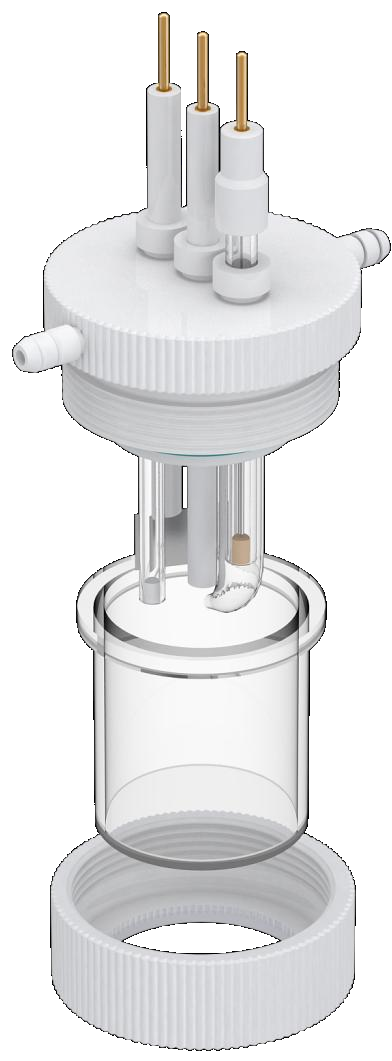

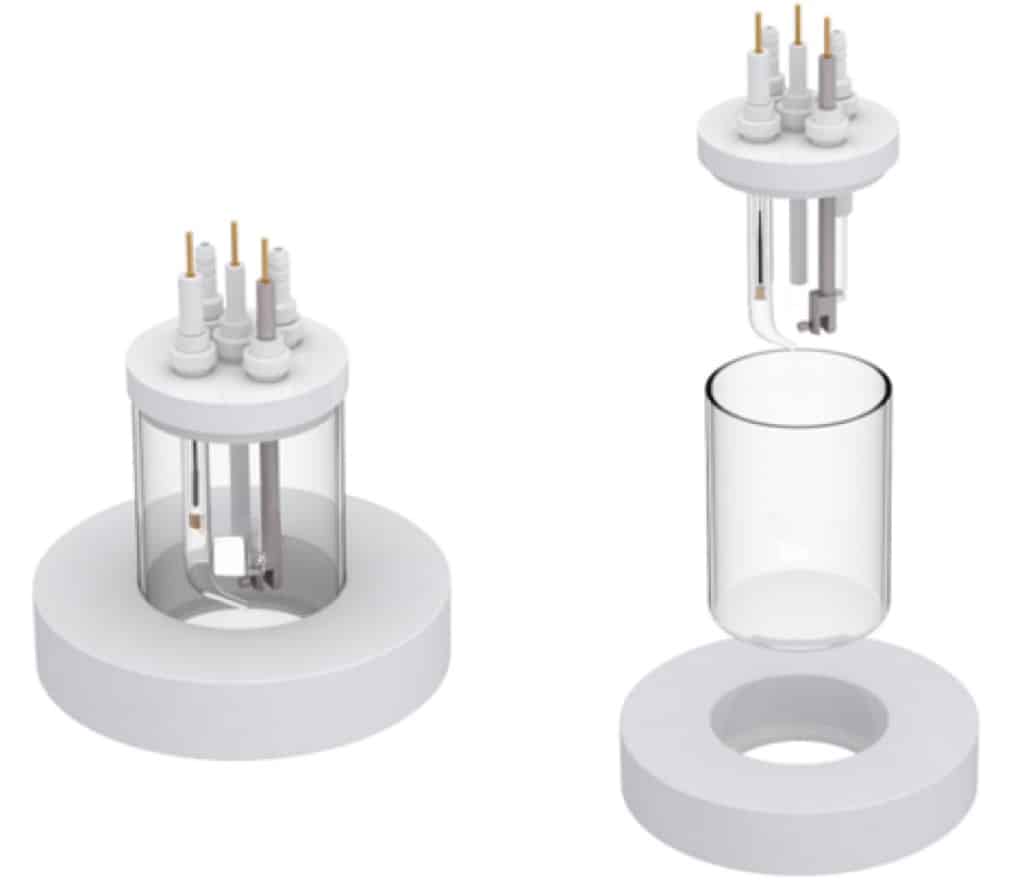

Cylindrical quartz electrochemical cell (relatively sealed), C015-1

Description:

• Cell body fused entirely with quartz, without any adhesives.
• Quartz of the cell provides over 95% light transmittance.
• The cell’s lid is made of polytetrafluoroethylene (PTFE).
• The cell can be equipped with inlet and outlet air devices.
• Electrodes for the cell need separate purchase.
• The reference electrode for this cell is generally a silver chloride electrode (diameter 3.8mm), counter electrode is platinum wire electrode with diameter 0.5mm, and a working electrode as glassy carbon electrode with diameter 3mm. Electrodes need to be purchased separately.
• The working electrode of the cell can also be replaced with a diameter 3mm gold disk electrode or other electrodes as required.
• The cell operates within a relatively sealed system.
• The quartz sealing of the cell employs an internal threaded design with O-ring, sealed by tightening the PTFE lid.
