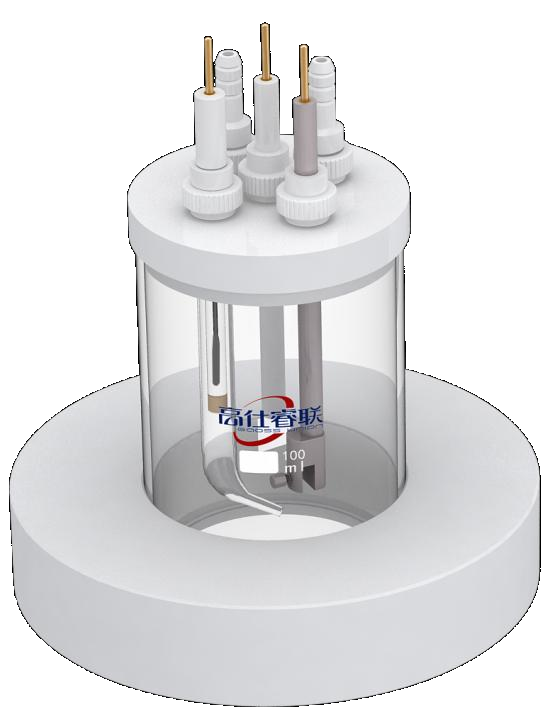

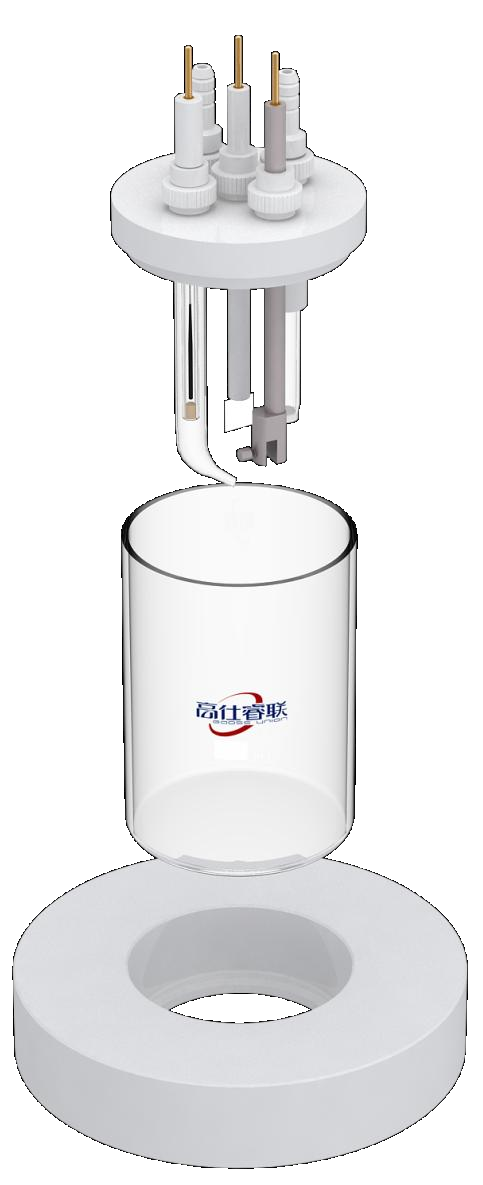

Cylindrical quartz electrochemical cell (open), C014

Description:

• The cell body is fused quartz without any adhesives.
• The quartz of the cell provides light transmittance >95%.
• The lid of the cell is made of polytetrafluoroethylene (PTFE).
• The cell can be equipped with air inlet and air outlet air connectors.
• The reference electrode for this cell is generally a silver chloride electrode (diameter 3.8mm), counter electrode is platinum wire electrode with diameter 0.5mm, and a working electrode as glassy carbon electrode with diameter 3mm. Electrodes need to be purchased separately.
• The working electrode of the cell can also be replaced with a diameter 3mm gold disk electrode or other electrodes as required…
• The cell operates within an open system.
• The cell includes a polytetrafluoroethylene base to prevent scratching of the quartz window at the bottom.
