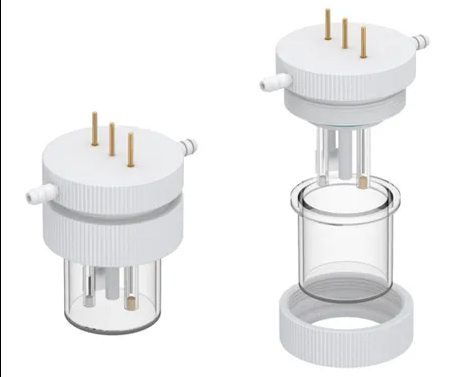

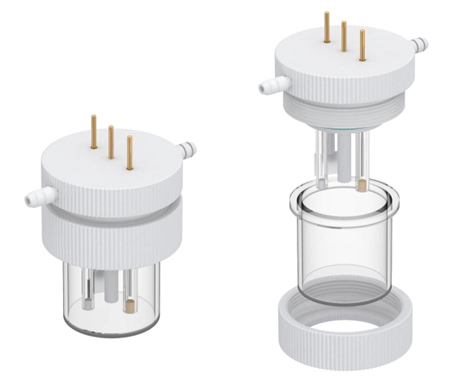

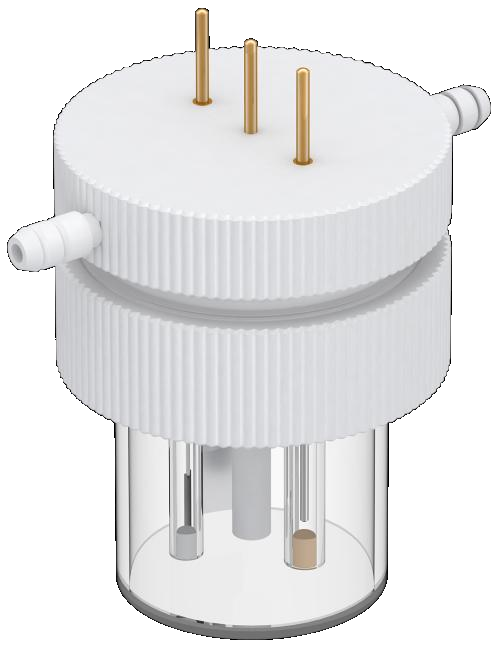

Cylindrical quartz electrochemical cell (absolutely sealed), C015-2

Description:

• Cell body fused entirely with quartz, without any adhesives.
• Quartz of the cell provides over 95% light transmittance.
• The cell’s lid is made of polytetrafluoroethylene (PTFE).
• The electrochemical cell is equipped with gas inlet and outlet devices.
• It can use Ag/AgCl as reference electrode (diameter of 3.8mm), platinum wire as counter electrode (diameter of 0.5mm), and glassy carbon as working electrode (diameter of 3mm).
• The working electrode of the electrochemical cell can also be replaced with a 3mm diameter gold disc, platinum disc or other electrodes according to requirements.
• Electrodes for the cell need separate purchase.
• The electrochemical cell is sealed system.

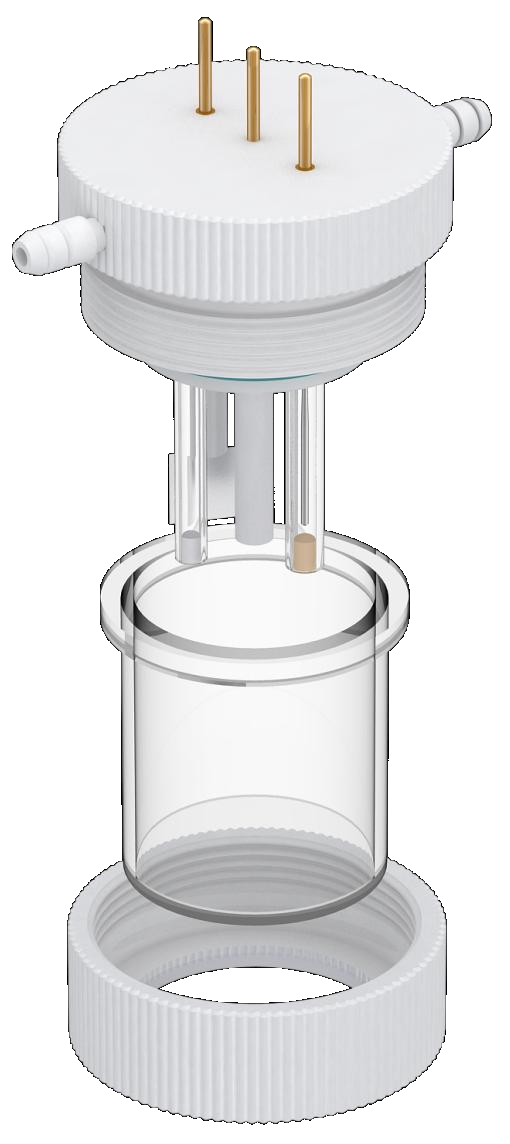

• The quartz sealing part of the electrochemical cell adopts a flange design, and the cover made of PTFE is screwed up and down, and the sealing ring is squeezed to seal.
• The electrodes of the electrochemical cell are plugged in and out through the earphone jack on the cover, so that the electrode system is absolutely sealed.

Dimension:
