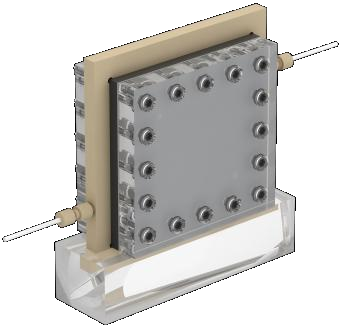

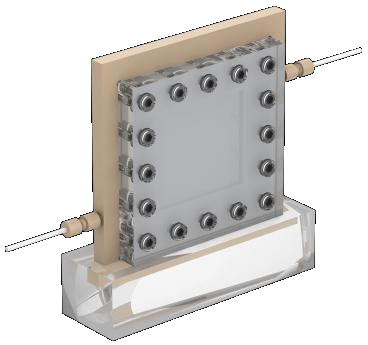

Capacitive deion device (desalination) Model: DQ-1 DQ-2

• Capacitive Deionization (CDI)
It is a kind of water desalination and purification technology based on double electric layer capacitor theory. The basic principle is that after applying low voltage to the electrode, the cation, anionic or charged particles in the solution migrate to the poles respectively under the action of electric field force and concentration gradient, and adsorb on the electrode surface to form double electricity
The Technique can also be called Electrosorption Technique (EST).

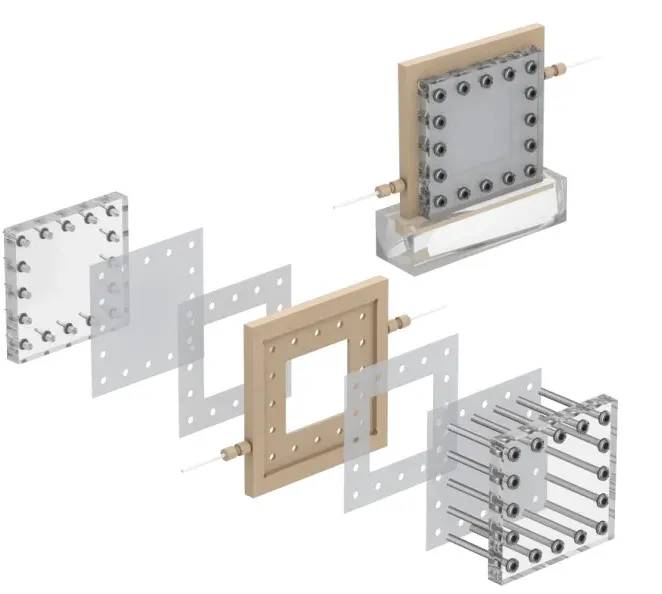

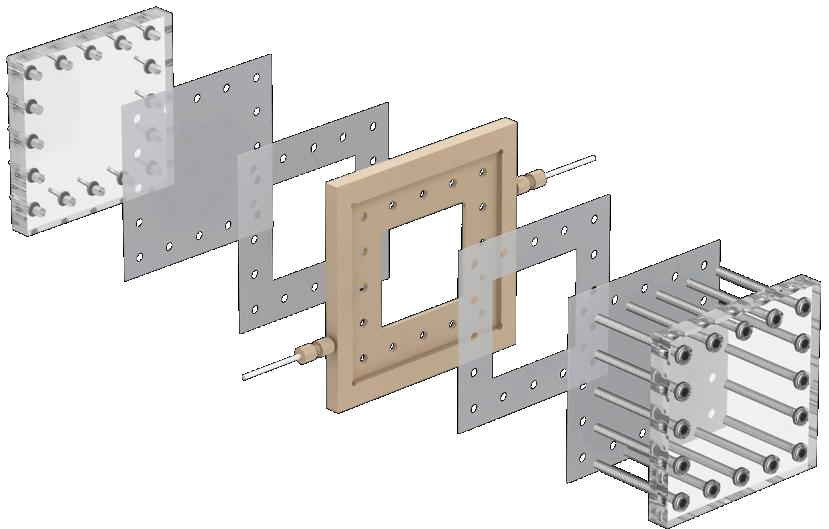

• The material of the left and right sides of the device is PMMA
• The device PEEK size 140*140*10mm
• The anode and cathode distance of the device is < 3mm

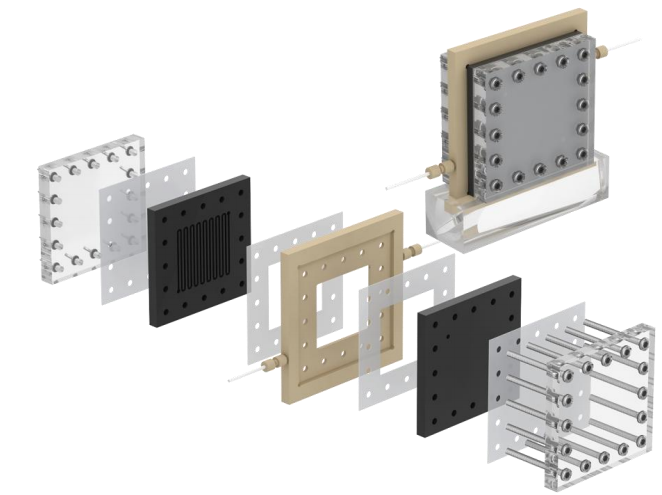

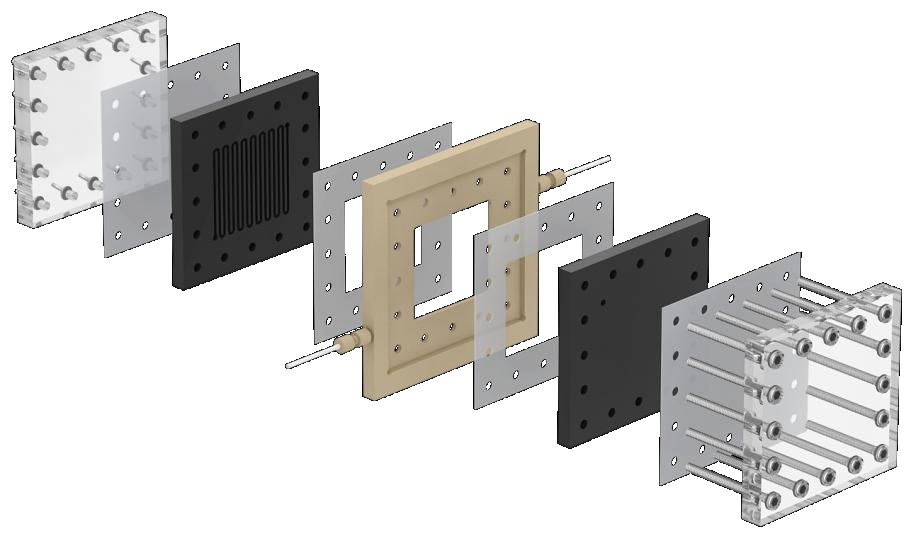

• A manifold has been added on the basis of DQ-1

Effectively achieve the purpose of desalination or purification.

• The left and right sides of the device are made of PMMA

• The device collector is made of imported ultra-pure stone Ink (isostatic pressure 520)

• The device manifold channel is a serpentine channel

• The size of the manifold of the device is 115*120*10mm

• The device channel size is 50*50*2mm

Dimension:

All sizes listed are common sizes, can be customized according to requirements.
