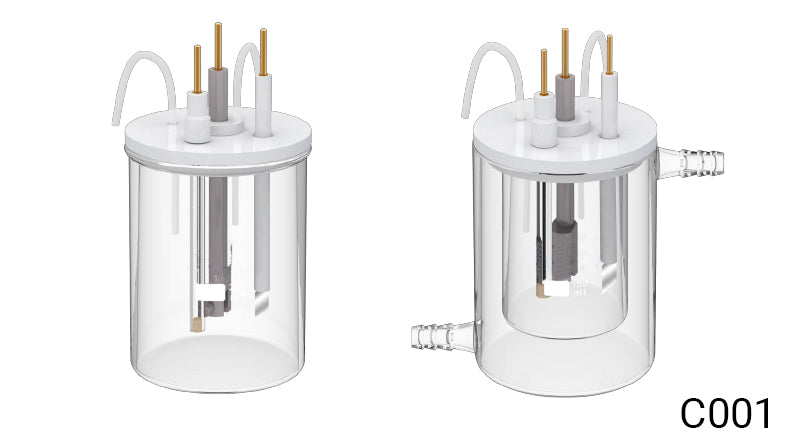

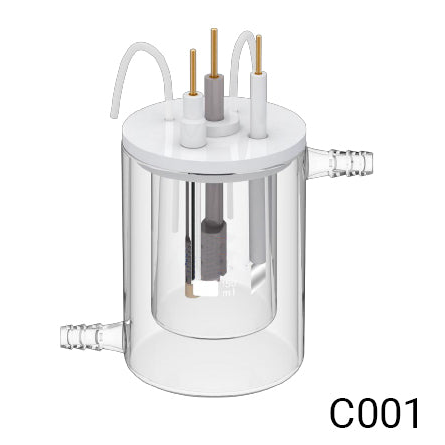

C001 series standard variable diameter electrolytic cell electrochemical cell (non-sealed)

Description:

• The cell is made of high purity borosilicate glass.
• This cell is often used in a 3-electrode system, with a customizable volume of 30ml to 500ml.
• The mouth of the single cell of the electrochemical cell adopts a flange design to increase the firmness of the cell.
• The electrochemical cell is equipped with variable-diameter electrode holes (diameter of 6.5mm, 8.5mm, 10.5mm, 12.5mm), which is convenient for matching with electrodes of different diameters.
• The electrochemical cell can be added with salt bridge or gas explosion according to requirements.
• The electrochemical cell can increase the inlet and outlet holes, and carry out atmosphere protection according to different experiments.
• The electrochemical cell comes in both single-layer and jacket form. The jacket layer allows a constant temperature through water circulation on top of the single layer design.

All sizes listed are common sizes, can be customized according to requirements.
