The new lithium sheet presents a silver-white metallic color of lithium, indicating that the experiment is more stable and more suitable for scientific research purposes.
The packaging specifications of the new lithium sheets are more flexible. There are small packaging sizes starting from 20g, allowing for immediate purchase as needed. This perfectly solves the problem of deterioration and safety risks of large packaging lithium sheets during long-term storage.
Before opening the product, a video must be recorded. This video should include the dew point in the drying room or the water and oxygen content in the glove box, the production date of the product, and a clear appearance of the product. Any appearance abnormalities without video evidence after opening will not be processed (appearance abnormalities beyond the shelf life will not be accepted).
1. Shooting the Kaifeng environment: dry room (dew point -45℃) or glove box with qualified water and oxygen (H2O, O₂) < 1 ppm;

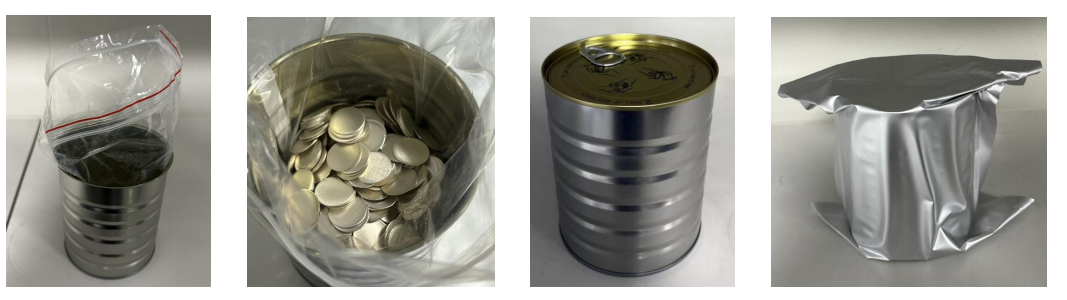

2. Take pictures of whether the labels on the can or packaging are sealed properly and whether the production date is displayed. If the packaging is intact, open it for inspection. Take close-up pictures of the product to clearly see its true condition. Then take out the product and place it in a stainless steel plate or a porcelain plate for a close-up view. Take a small amount of the product and take pictures of the local parts clearly. The entire unpacking video must be shot continuously throughout. If the operation is not carried out as required, it will be regarded as a product defect caused by the user themselves.
Delivery time: 7-15 days

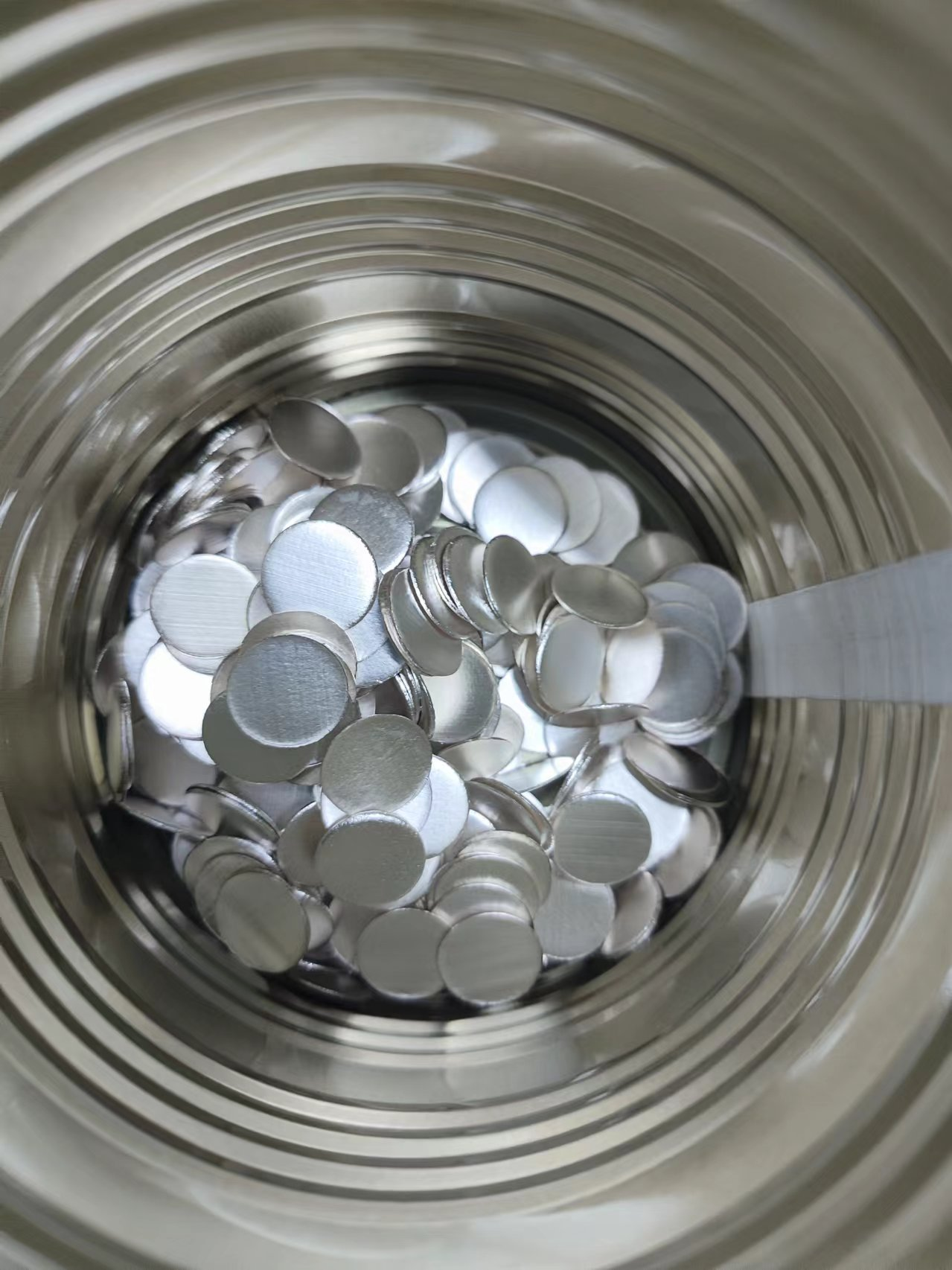

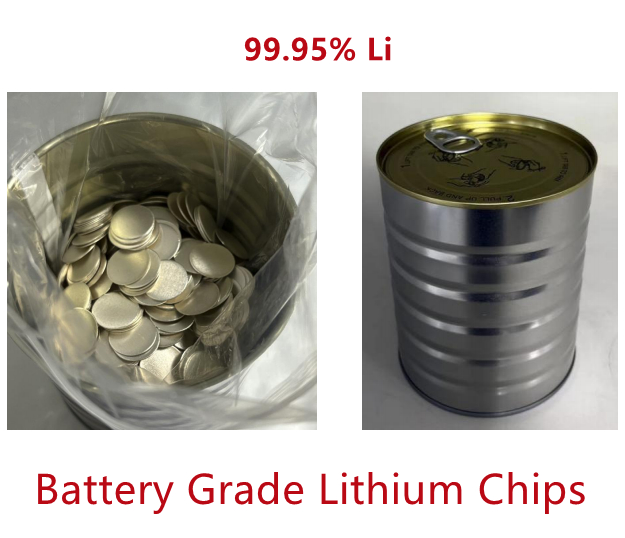

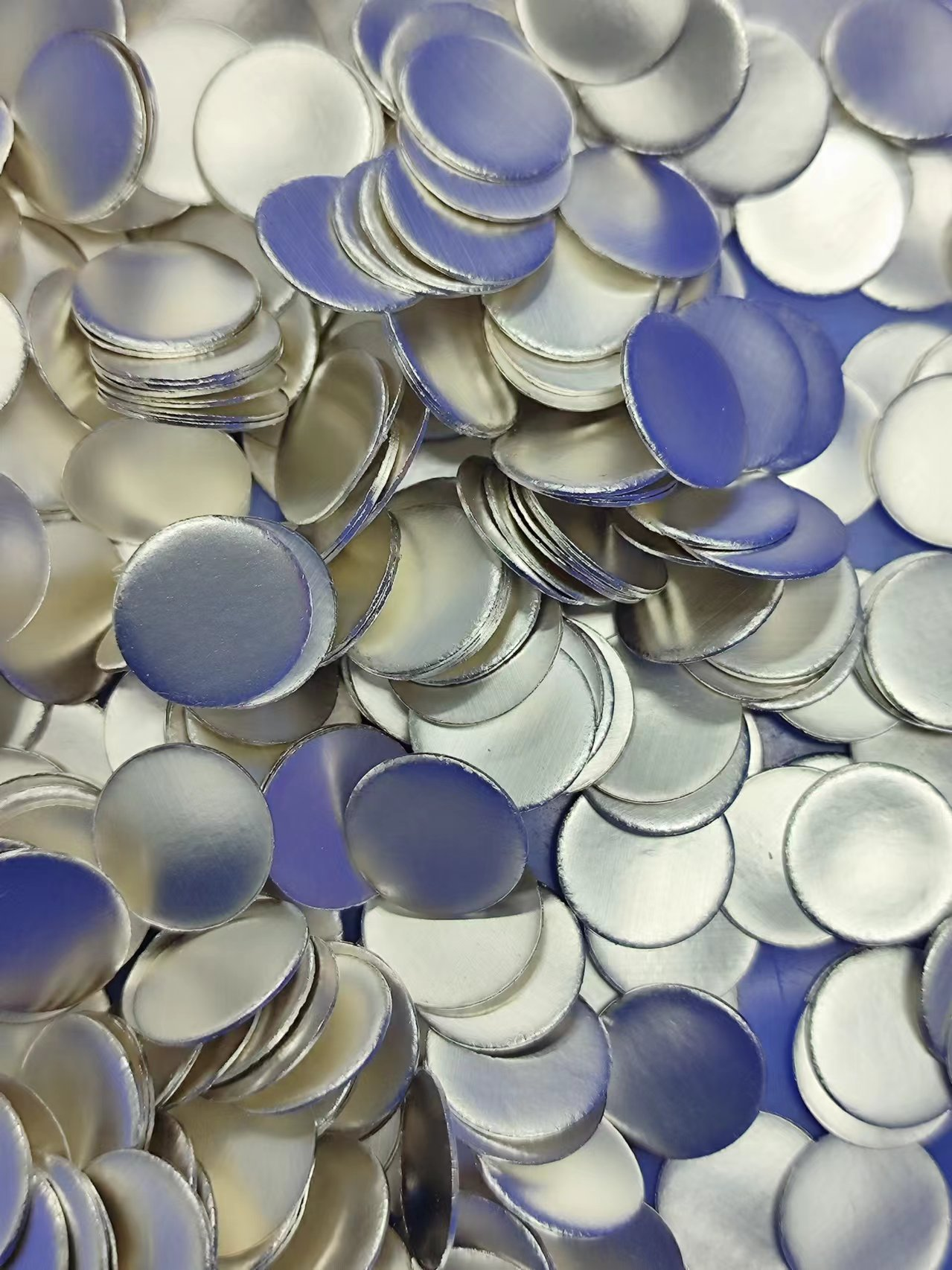

Battery grade lithium chips with 16mm Diameter and 0.6mm Thick for battery research. These lithium chips are widely used in Li ion and Li-Metal battery research. Lithium is very reactive in air. Never open the can in air. Can with lithium chips must be opened inside a glove box with Argon Gas and moisture less than 2%RH.
Coin cell lithium chips dimension chosen guide:
The diameter and thickness of lithium chips can be customized upon request. The diameter can be customized 6~25 mm while thickness is 0.1~4 mm.
Lithium chips with 16mm Diameter and 0.6mm are popular for CR2032 use.
|
Composition |
Name |
Lithium Chip |
|
Apperance |
Platy |
|
|
Color |
Silvery White |
|
|
Smell |
Slightly Smell |
|
|
Technical |
Specific Gravity |
0.534g/cm3 |
|
Lithium Chip |
99.9%(Battery Grade) |
|
|
Diameter*Thickness(100g/Bottle) |
Φ15.6*0.25mm(T) |
|
|
Diameter*Thickness(130g/Bottle) |
Φ15.6*0.45mm(T) |
|
|
Diameter*Thickness(100g/Bottle) |
Φ16*0.6mm(T) |
|
|
Melting Point |
180.5℃ |
The minimum order packaging is 20g.
Size(The size can be customized)
|
|
Diameter*Thickness (mm) |
|
1 |
15*0.6 |
|
2 |
15*1 |
|
3 |
15.4*1.1 |
|
4 |
15.6*0.25 |
|
5 |
15.6*0.45 |
|
5 |
16*0.4 |
|
7 |
16*0.6 |
