Ag/AgCl electrode is recommended to be used in the neutral solution
(filled with saturated KCI solution)

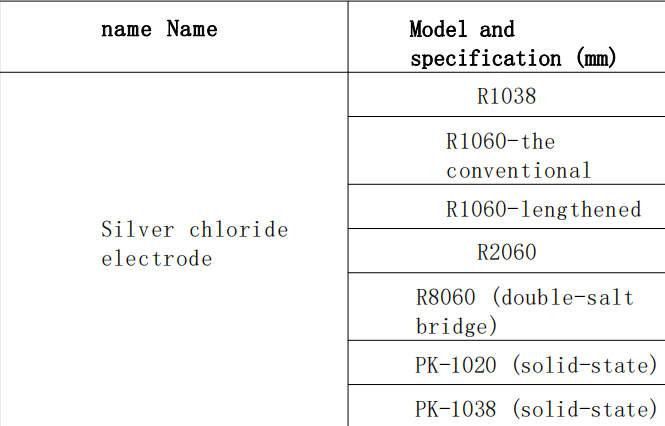

| Name | Model | Specification |
| Ag/AgCl Electrode | R1038 | Glass body with a diameter of 3.8mm |
| R1060-regular | Glass body with a diameter of 6.0mm | |
| R1060-long | Glass body with a diameter of 6.0mm | |
| R2060 | PTFE body, diameter of 6.0mm | |
| R8060 | Double-salt-bridge | |
|
PK-1020(electrolyte-less) |
PEEK body, diameter of 2.0mm | |
|
PK-1038(electrolyte-less) |
PEEK body, diameter of 3.8mm |
TYPE1

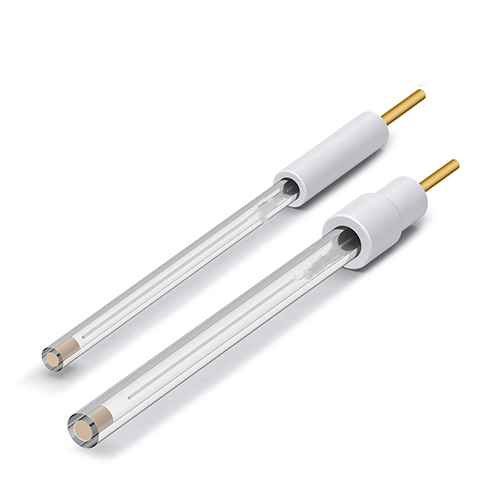

R1038 Silver chloride electrode (diameter 3.8mm)
Name: Ag/Agcl Electrode
Model specification: Ag/AgCl-3.8
Product introduction: Electrode glass tube length 40mm, diameter 3.8mm. The length of PTFE is 20mm and the diameter is 6mm.
Electrode tail length 15mm porous ceramic at the front end of the electrode is fired and the sealing electrode tail is inserted and removed, which is convenient to add internal solution after long-term use of silver chloride coating falling off, silver chloride coating can be re-coated
The silver chloride coating adopts vacuum evaporation process to improve the service life of the product.
Electrode jacket: 3.8mm diameter glass tube
TYPE2
R1038 Silver chloride electrode (diameter 6.0mm)
removable silver chloride electrode -6.0
Name : Ag/Agcl Electrode
Model specification: Ag/AgCl-6.0
Product introduction: Electrode glass tube length 80mm, diameter 6mm. The length of PTFE is 20mm and the diameter is 10mm. Electrode tail length 15mm
The porous ceramic at the front end of the electrode is sealed by firing process
The electrode tail adopts the insertion and removal process to facilitate the addition of internal solution
Electrode jacket: 6mm diameter glass tube
For more parameters, please contact us
