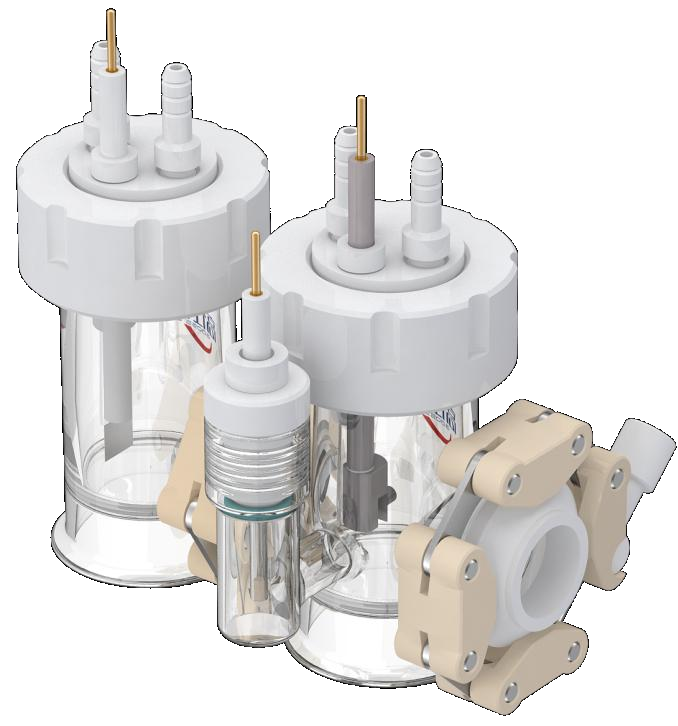

The electrolytic cell is upgraded on the basis of C008-1, adding a light window
• The light window of the electrolytic cell adopts quartz with light transmittance greater than 95%.
• The electrolytic cell is separated from the reference electrode and the working electrode, and is connected by the Lukin capillary tube to effectively reduce R drop.
• The pore diameter of the tip part of the Lukin capillary extending into the working electrode chamber of the electrolytic cell is less than 0.2mm.
• AGAR can be added to the Lukin capillary of the electrolytic cell to reduce the flow rate of the electrolyte.
• The reference electrode chamber of the electrolytic pool is sealed with internal thread, and it must be sealed effectively to avoid the reference electrode chamber and the working electrode chamber
The communicator effect caused seepage.
• The electrodes of the electrolytic cell can be matched according to needs, and the distribution poles must be extended.
• The cell volume from 30ml to 500ml, can also be customized according to requirements.
• The cathode and anode chambers of the electrolytic cell are separated by ionic membrane (user's own) and the two chambers are sealed and linked by a chain to facilitate the replacement of the diaphragm.
• The inner core of the cell uses 360-degree rotating polytetrafluoroethylene so that the electrode precisely corresponds to the channel (generally the electrode is parallel to the membrane)
• The electrolytic cell is equipped with an aeration device that can vent below the liquid level, and aeration devices of different shapes are selected for atmosphere according to different experiments. E.g. carbon reduction
Use straight aeration and L aeration for nitrogen reduction.
The 10ml of electrolytic cell is designed with internal thread, please refer to "C025-10" for details

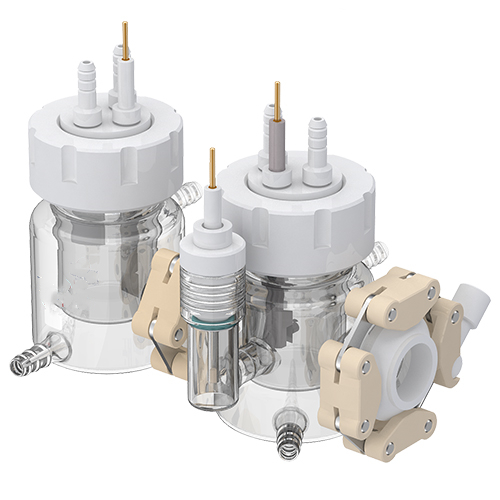

| Volume (ml) | Single layer | Jacketed | |
| 30mL | 150mL | ||
| 50mL | 200mL | ||
| 100mL | 250mL | ||
All sizes listed are common sizes, can be customized according to requirements.
