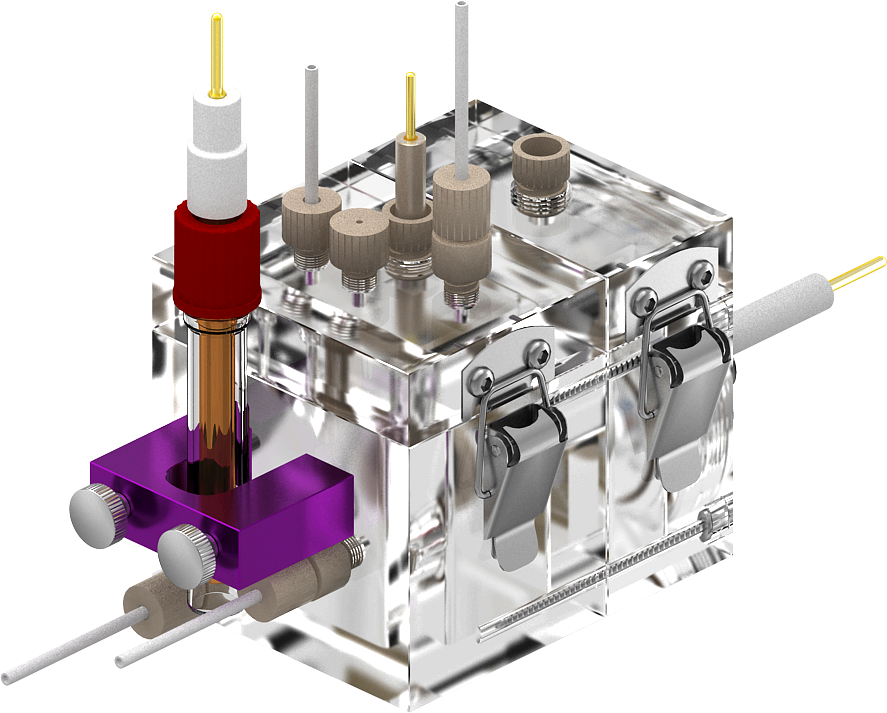

Description
Materials: PMMA, PTFE, PEEK
Electrode gap (anode–cathode distance): <14 mm
Typical Applications:
CO₂ Reduction reaction (CO₂RR)
Electrocatalysis studies
Hydrogen and oxygen evolution reactions (HER/OER)
Small-scale membrane electrode assembly (MEA)
Membrane material screening
Includes PEEK parts produced with Ensinger™ TECAPEEK (medical-grade)

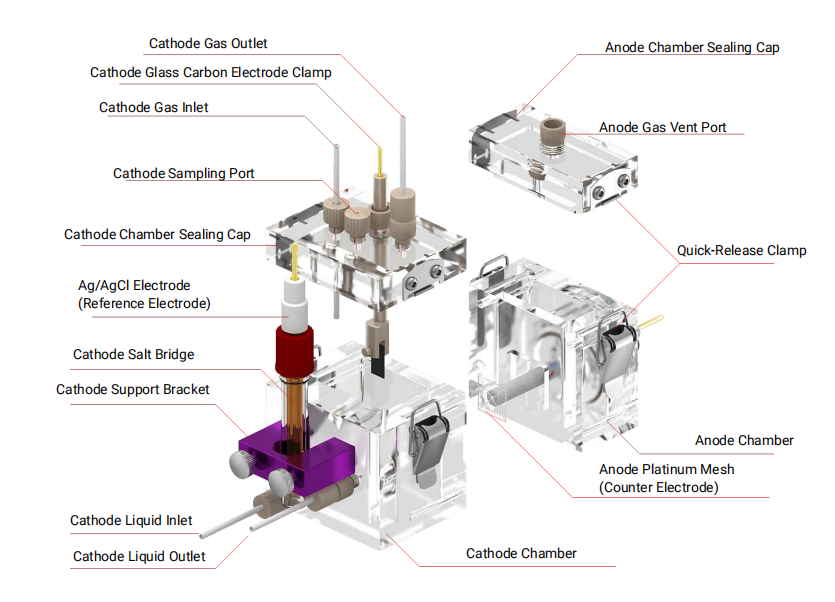

Key Advantages
1. Low iR Drop Design
Maintains cell voltage <10 V at 2 A, with reference electrode positioned at near-zero
distance from the working electrode to minimize internal resistance.
2. Catholyte Flow Capability
Integrated inlet/outlet ports enable electrolyte circulation for
flow-based electrolysis; ports can be sealed when not in use.

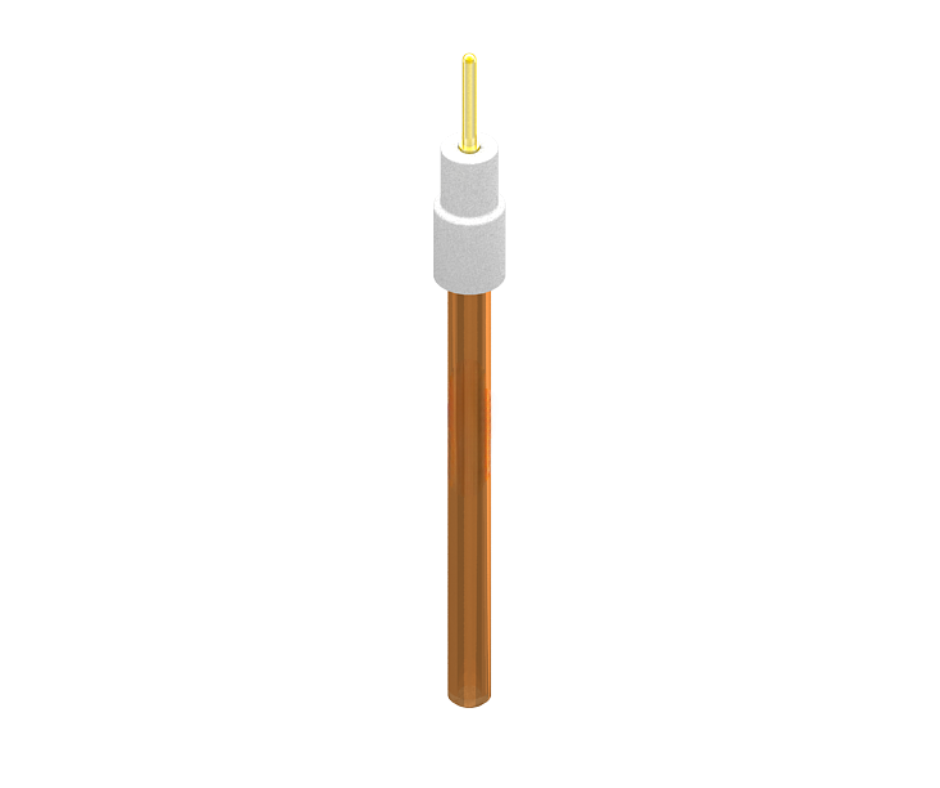

3. Adjustable Salt Bridge Positioning
L-shaped side-mounted salt bridge allows fine-tuning
of the reference-to-working electrode distance.
4. Stabilized Salt Bridge Mount
Anti-shift fixture ensures stable placement of the salt
bridge while allowing precise positional adjustment.
5. Quick-Lock Cell Assembly
Quick-release clamp and fast-opening cover design enable easy membrane replacement
6. Leak-Proof Sealing
Fluororubber compression seal ensures high integrity against liquid leakage during extended operation.
7. Integrated Gas Channels
Cathode chamber includes submerged gas inlet and quick-connect outlet, promoting efficient gas–liquid contact and airtight performance.

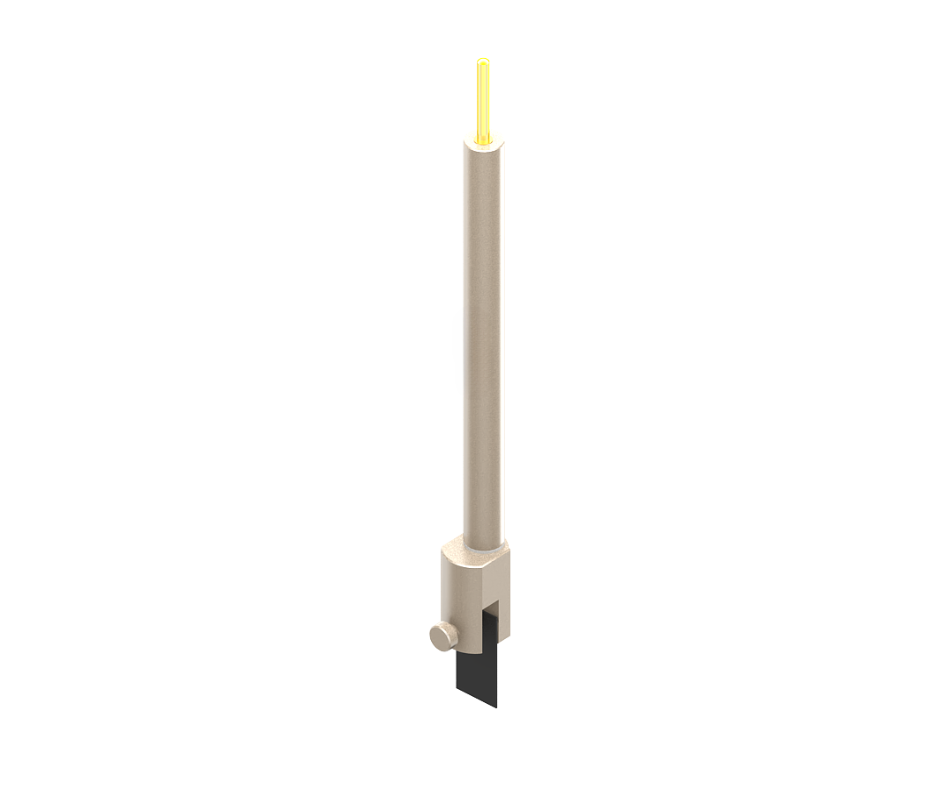

8. Standardized Electrode Compatibility
Supports 6 mm rod-type working electrodes for plug-and-play integration with common setups
9. Real-Time Anode Venting.
Dedicated gas vent port on the anode side allows for dynamic gas release during reactions.

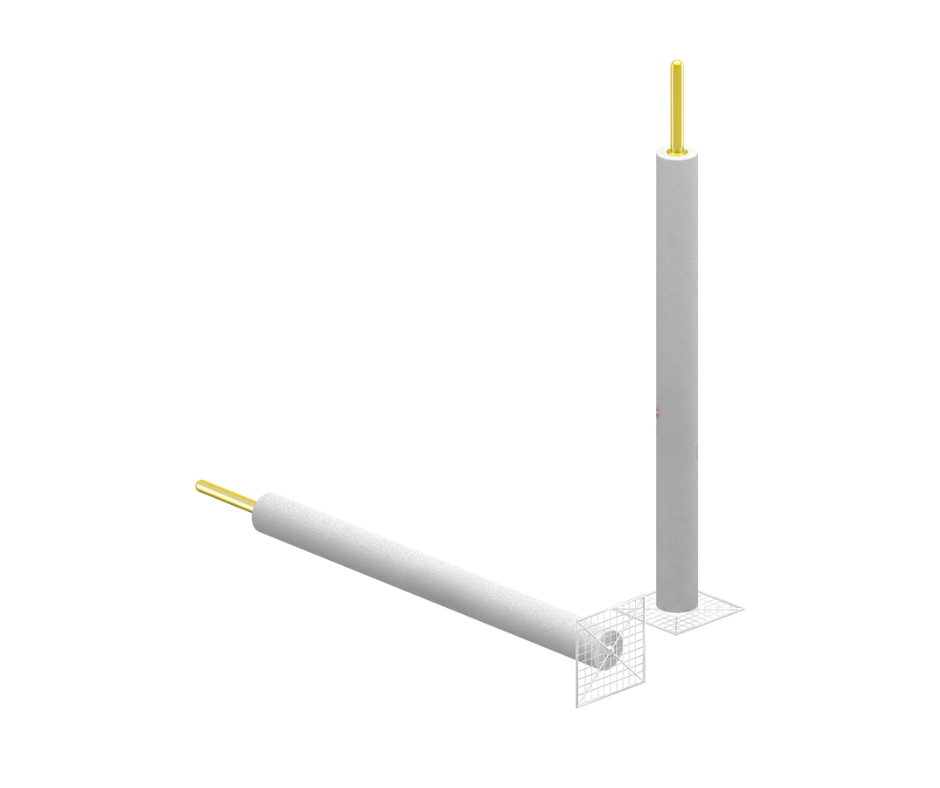

10.High-Purity Counter Electrode
99.99% pure platinum mesh counter electrode ensures stable and reproducible performance—superior to gold-plated alternatives.
11. Dual-Stage Sealing at Anode Interface
Tapered sealing structure ensures leak-proof operation while
allowing easy electrode installation
